Galaxy DX-99V

A picture of Galaxy DX-99V

SPECIFICATIONS

GENERAL
Type:Citizen band / "Freeband" / Export transceiver
Frequency range:25.165-28.755 MHz
Channels / tuning steps:320
Mode:AM / FM / SSB
Frequency control:PLL (MC145106)
Frequency stability:0.001% @ -30 to +50°C (-22 to +122°F)
Clarifier or Delta tune:Coarse: ±? KHz
Fine: ±1 KHz
Power supply:13.8 VDC (3-pin connector)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):200*60*235 mm (7.88*2.38*9.25")
Weight:2.27 Kg (5 lb)
Other features: PA. NB. Voice changer. Roger beep. Echo chamber.
+10 KHz switch. Dimmer.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne (SSB)
IF: 10.695 MHz
Double conversion superheterodyne (AM/FM)
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity: AM: 1 uV (10 dB S+N/N)
FM: 1 uV (20 dB S+N/N)
SSB: 0.25 uV (10 dB S+N/N)
Selectivity: AM/FM: 3 KHz (-6 dB), 9 KHz (-50 dB)
SSB: 2.1 KHz (-6 dB), 3.3 KHz (-60 dB)
Image rejection:65 dB
AF output power / speaker:4 W at ?% distortion / 8 ohm
External speaker connector:3.5 mm (TS), 4-8 ohm




TRANSMITTER SECTION
RF output power: AM/FM: 10 W
SSB: 30 W (PEP)
Modulation system: AM: High- and low class B
FM: Variable capacitance
SSB: Balanced
FM deviation (Factory set):±? KHz
Spurious emissions:Better than -50 dB
Microphone impedance / connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Taiwan and Malaysia, 199x-20xx (Discontinued)
Main PCB:
Sub PCBs:
Additional info:
Related documents: User manual (598 KB)
PLL: MC145106
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -

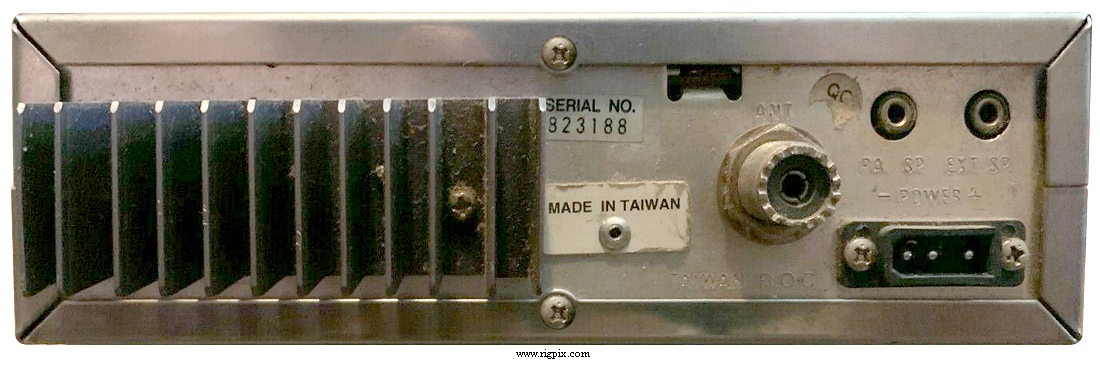

A rear picture of Galaxy DX-99V
