| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM / SSB |
| Frequency control: | PLL (RCI8719) |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | ±1 KHz |

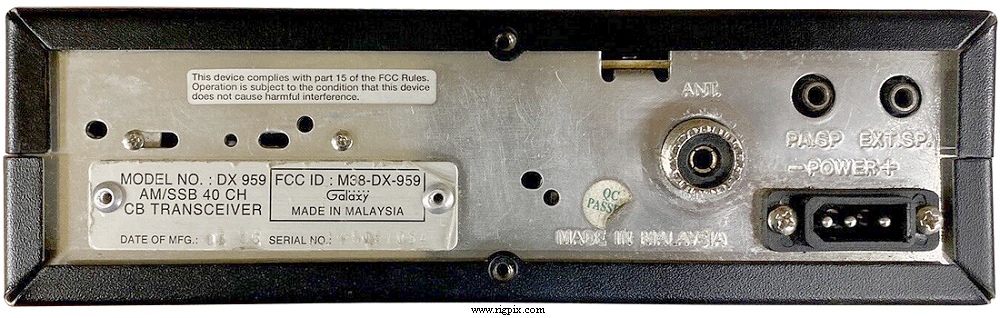

| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 200*54*235 mm (7.88*2.12*9.25") |
| Weight: | 2.5 Kg (5.5 lb) |
| Other features: | PA. NB/ANL. Dimmer. SWR-meter. Roger beep. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: |
AM: 0.5 uV (10 dB S+N/N)
SSB: 0.25 uV (10 dB S+N/N)
|
| Selectivity: | 65 dB |
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / ? ohm |
| External speaker connector: | 3.5 mm (TS), 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | AM: 4 W
SSB: 12 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -55 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Malaysia, 1997-201x (Discontinued) |
| Main PCB: | EPT069611A by Ranger |
| Sub PCBs: | |
| Additional info: | |
| Related documents: | User manual (286 KB) |
| Approval / Market: |
USA
FCC ID: M38-DX-959
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
