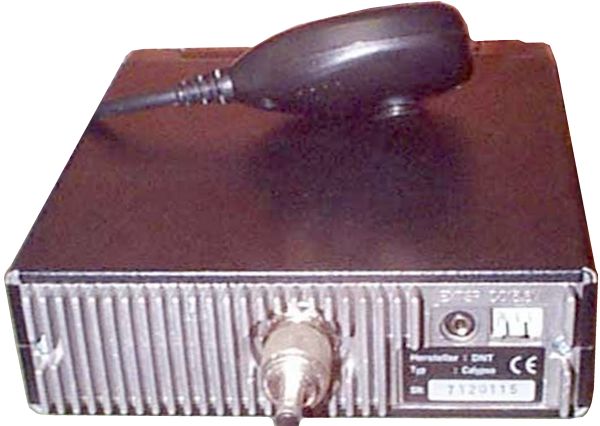

| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
Frequency range
depending on setting: |
26.965-27.405 MHz
25.615-28.305 MHz
28.000-29.700 MHz
|
| Channels / tuning steps: | Max 240 |
| Mode: | AM / FM / SSB |
| Frequency control: | PLL |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | Coarse: ±? KHz
Fine: ±? Hz |
| Power supply: | 13.2 VDC |
| Current drain / power consumption: | RX: Max 500 mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 158*48*185 mm (6.22*1.89*7.28") |
| Weight: | 1.1 Kg (2.42 lbs) |
| Other features: | 4 memories with scanning. Dual watch. Detachable front panel. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 2.5 uV (20 dB (S+N+D)/N)
FM: 1.3 uV (20 dB (S+N+D)/N)
SSB: 1.7 uV (20 dB (S+N+D)/N)
|
| Selectivity: | 60 dB (ETS 300 135) |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohms |
| External speaker connector: | 3.5 mm (TS) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 7 W
FM: 15 W
SSB: 15 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 19xx-19xx (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
CPU/PLL: LC7232N
FM-IF: IR3N06
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
