| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | FM |
| Frequency control: | PLL |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | No |
| Power supply: | 11-15 VDC |
| Current drain / power consumption: | RX: Max 300 mA
TX: Max 1.6 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 140*37*194 mm (5.51*1.46*7.64") |
| Weight: | ? Kg (? lb) |
| Other features: | Dual watch. 4 memories with scanning. LCR. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz - Ceramic filter: LT455HT
|
| Sensitivity: | 0.5 uV (10 dB SINAD) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 3.5 W at ?% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | Hi: 4 W
Lo: 1 W |
| Modulation system: | |
| FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 6-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Thailand (Designed in Denmark), xxxx-200x (Discontinued) |

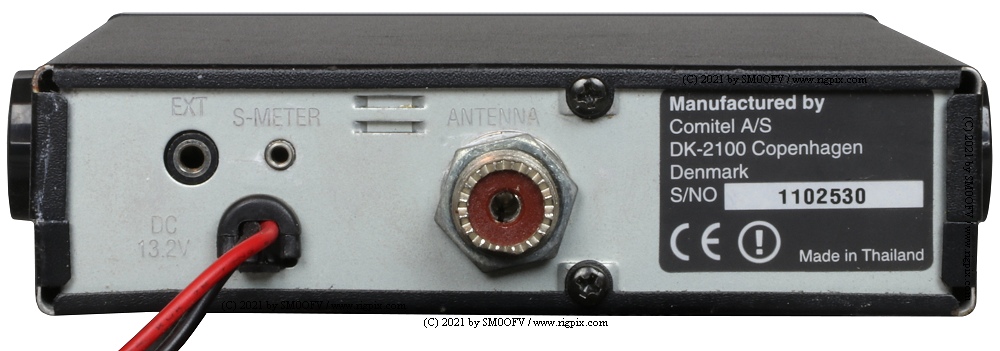

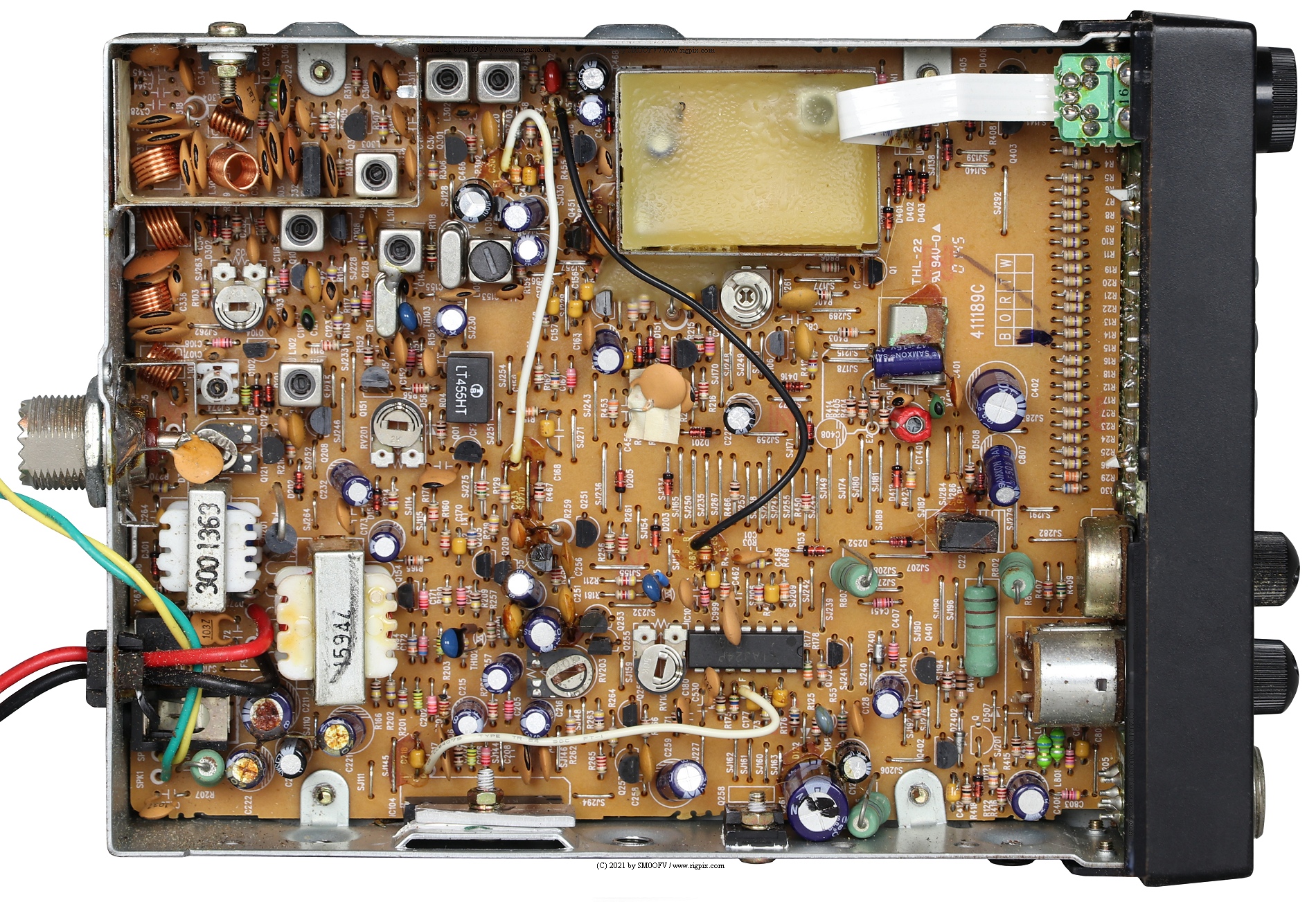

| Main PCB: | 411189C by Maxon |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
AF amplifier: KIA7217AP
RF final: 2SC1969
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
