| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 + 3 optional |
| Mode: | AM |
| Frequency control: | XTAL-matrix (14 XTALs) |
| Frequency stability: | ±0.005% @ -10 to +50°C (14 to 122°F) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Male 2-pin jack) |
| Current drain / power consumption: | RX: 250-450 mA
TX: Less than 1.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 204*60*196 mm (8*2.4*7.7") |
| Weight: | 1.92 Kg (4.23 lb) |
| Other features: | PA. ANL. Tone hi-cut. Local/DX switch. SWR-meter. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.595-10.635 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S+N/N) |
| Squelch sensitivity: | |
| Selectivity: | 50 dB (Adjacent channel) |
| Image rejection: | 50 dB |
| AF output power / speaker: | 4 W W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Less than 30 uW |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|

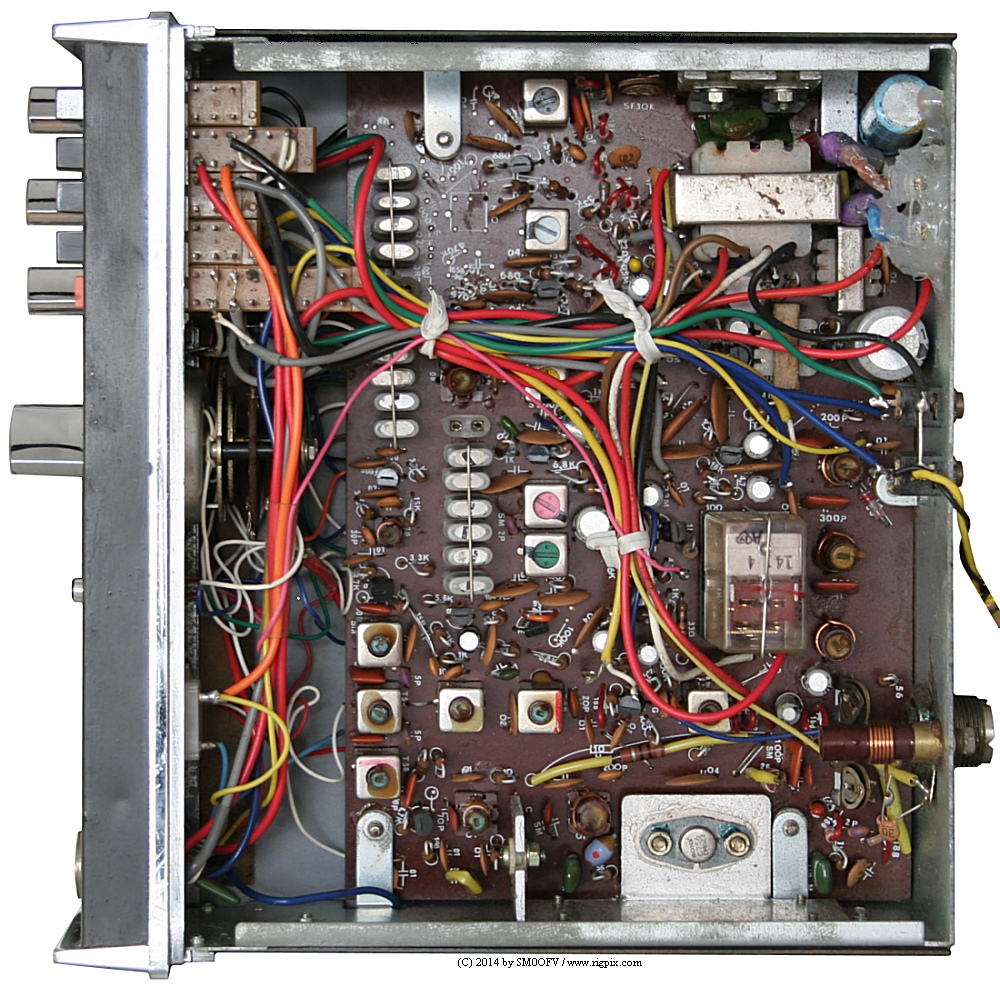

| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
See also the base station configuration
New price 1977 in Sweden: SEK 995:-
Clearance price 1983 in Sweden: SEK 463:-
|
| Related documents: |
User/service manual (14.2 MB)
RF final: 2SC756
|
| Known markets and approvals: |
Sweden
Televerket Radio
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
