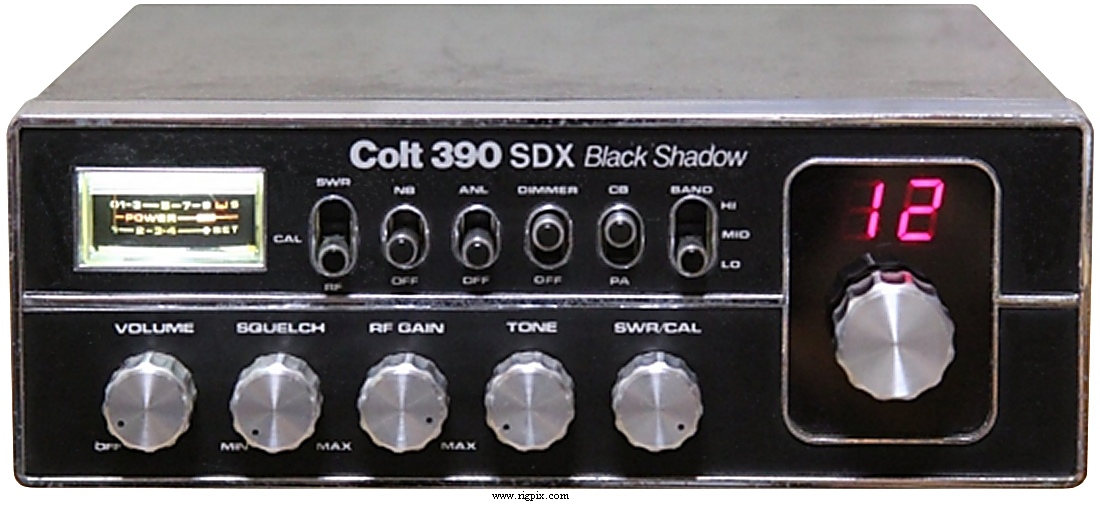

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: |
26.965-27.855 MHz in three bands:
| Lo: | 26.965-27.405 MHz |
| Mid: | 27.415-27.855 MHz |
| Hi: | 27.865-28.305 MHz |
|
| Channels / tuning steps: | 120 (3*40) |
| Mode: | AM |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | Max ? ppm |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | PA. ANL/NB. Dimmer. SWR-meter. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Main PCB: | PTBM106AOX by Cybernet Electronics Corporation |
| Sub PCBs: | |
| Additional info: | It seems as the optional FM board was quite popular in Europe at the time. |
| Related documents: | PLL: PLL02A |
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
