Colt 320 DX "Black Shadow SSB"

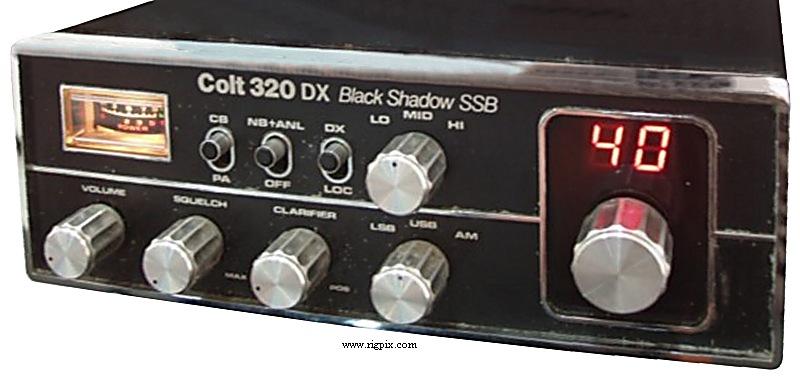

A picture of Colt 320 DX ''Black Shadow SSB''

SPECIFICATIONS

GENERAL
Type:Citizen band / "Freeband" / Export transceiver
Frequency range: 26.965-28.305 MHz in three bands:
Lo:   26.965-27.405 MHz
Mid:   27.415-27.855 MHz
Hi:   27.865-28.305 MHz
Channels / tuning steps:120 (3*40)
Mode:AM / SSB
Frequency control:PLL (PLL02A)
Frequency stability:Max ? ppm
Clarifier or Delta tune:±? Hz

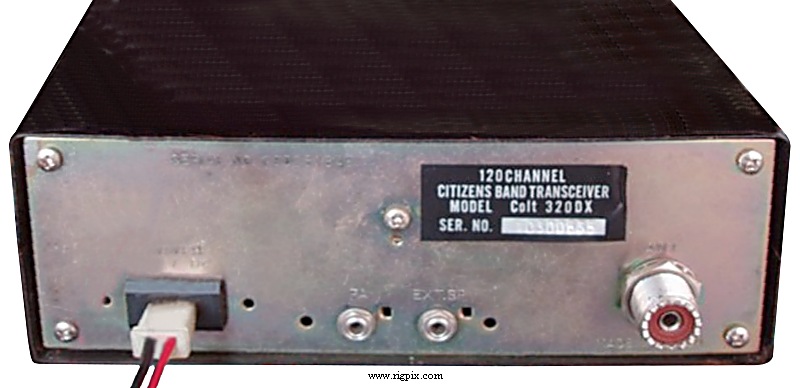

Power supply:13.8 VDC (Male 2-pin jack)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):190*65*255 mm (7.48*2.56*10.04")
Weight:2.55 Kg (5.62 lb)
Other features:PA. ANL/NB. Local/DX switch.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne (SSB)
IF: 10.695 MHz
Double conversion superheterodyne (AM)
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power: AM: 4 W
SSB: 12 W (PEP)
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 4-pin (Male locking ring jack)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 198x-198x (Discontinued)
Main PCB:PTBM121D4X by Cybernet Electronics Corporation
Sub PCBs:
Additional info:
Related documents:PLL: PLL02A
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -
