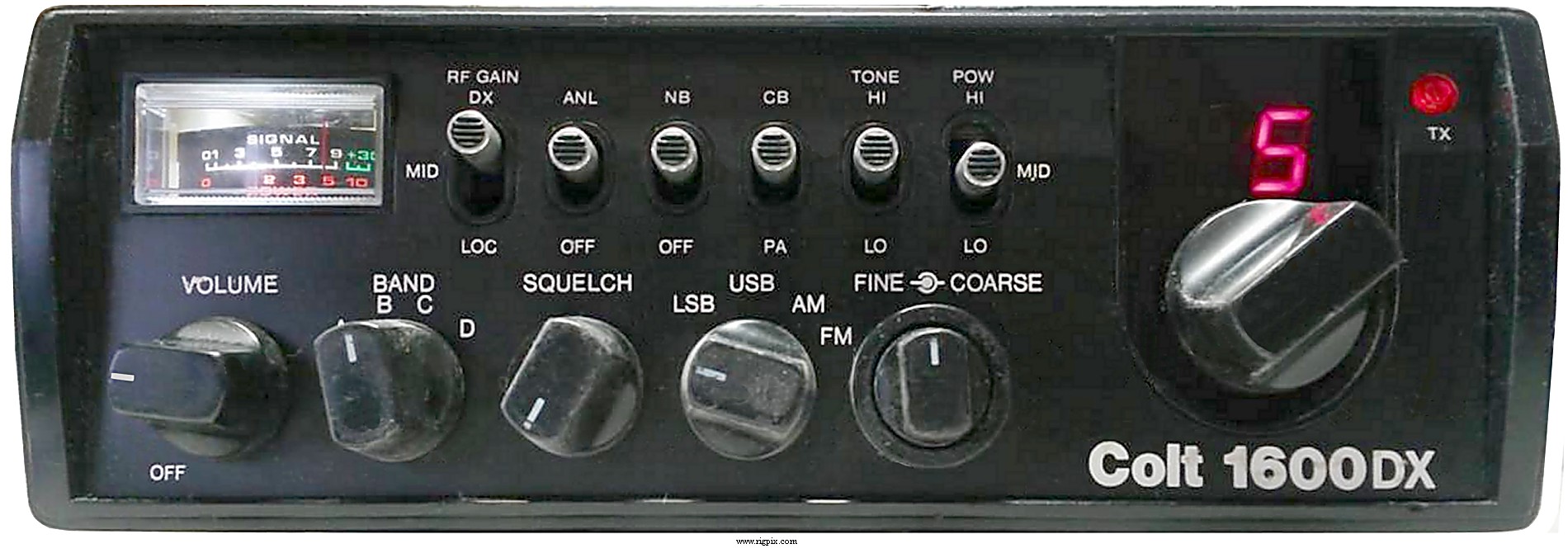

| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: |
26.515-27.305 MHz in four bands:
| A: | 26.515-26.955 MHz |
| B: | 26.965-27.405 MHz |
| C: | 27.415-27.855 MHz |
| D: | 27.865-28.305 MHz |
|
| Channels / tuning steps: | 160 (4*40) |
| Mode: | AM / FM / SSB |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | Coarse (RX/TX): ±5 KHz
Fine (RX): ±800 Hz |
| Power supply: | 13.8 VDC (2-pin connector) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | PA. ANL/NB. Roger beep. Local/DX switch. Tone hi-cut. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB)
IF: 10.695 MHz
Double conversion superheterodyne (AM/FM)
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 1 uV (19 dB S/N)
FM: 1 uV (20 dB S/N)
SSB: 0.5 uV (10 dB S/N)
|
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 2 W at ?% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| AM: | 7.5 W | 4 W | 1 W |
| FM: | 10 W | 7 W | 2 W |
| SSB (PEP): | 12 W | 8 W | 2 W |
|
| Modulation system: | SSB: Double-balanced modulator with crystal lattice filter |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Main PCB: | PTBM125A4X by Cybernet Electronics Corporation |
| Sub PCBs: |
PTLD085AOX - LED channel display board
PTSW146AOX - Channel selector board
|
| Additional info: | |
| Related documents: | User manual (4 MB) |
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
