Colt 120 DX

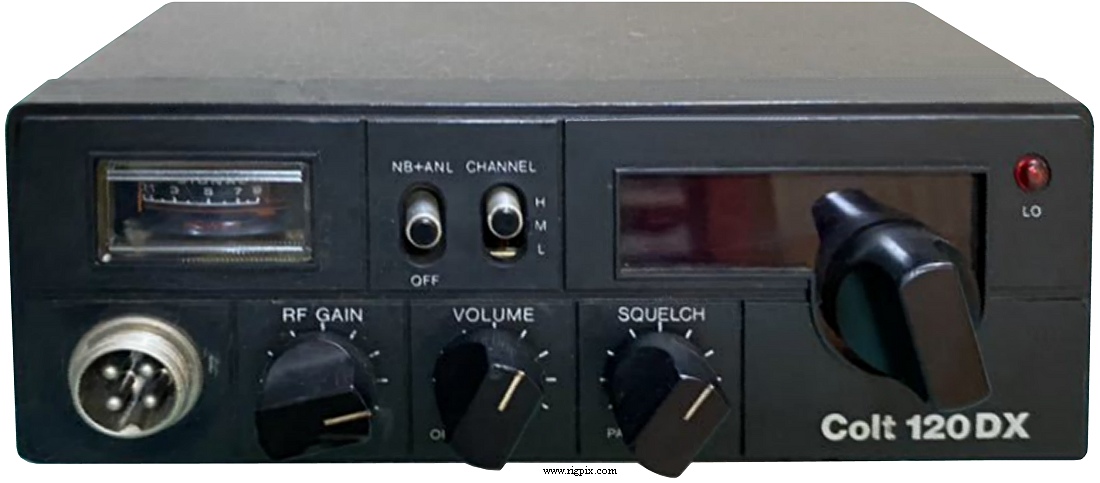

A picture of Colt 120 DX

SPECIFICATIONS

GENERAL
Type:Citizen band / "Freeband" / Export transceiver
Frequency range:26.?-2?.? MHz
Channels / tuning steps:120 (3*40)
Mode:AM
Frequency control:PLL (PLL02A)
Frequency stability:?%
Clarifier or Delta tune:No
Power supply:13.8 VDC (2-pin connector)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):162*56*205 mm (6.38*2.2*8.07")
Weight:1.53 Kg (3.37 lb), without mounting bracket
Other features:PA. ANL/NB.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:4 W
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 197x-197x (Discontinued)
Main PCB:PTBM? by Cybernet Electronics Corporation
Sub PCBs:
Additional info:
Related documents:PLL: PLL02A
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -
A rear picture of Colt 120 DX
