Colt 1000 "Black Shadow SSB"

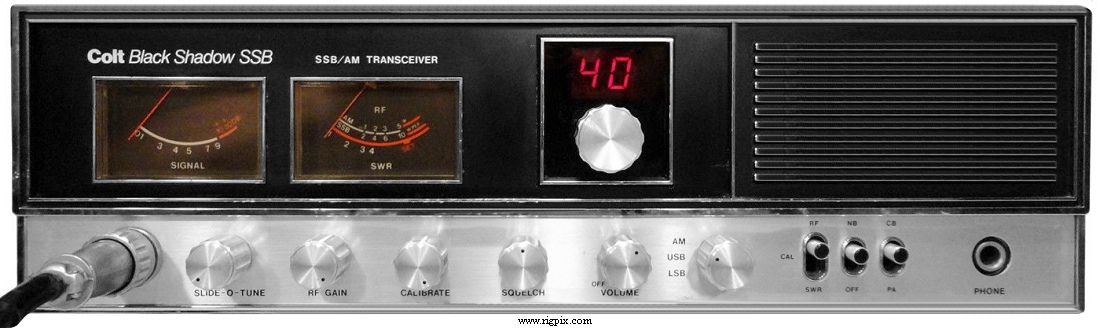

A picture of Colt 1000 ''Black Shadow SSB''

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.405 MHz
Channels / tuning steps:40
Mode:AM / SSB
Frequency control:PLL (PLL02A)
Frequency stability:0.003% @ -30 to +50°C (-22 to +122°F)
Clarifier or Delta tune:±? KHz "Slide-o-tune"
Power supply:Mains: 105-120 VAC
or 10.5-16 VDC (Male 2-pin jack)
Current drain / power consumption:RX: 0.5-1.5 A
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):329*104*247 mm (12.95*4.09*9.72")
Weight:5 Kg (11.02 lb)
Other features:PA. NB. SWR meter.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne (SSB)
IF: 10.695 MHz
Double conversion superheterodyne (AM)
1st IF: 10.695MHz
2nd IF:455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:3 W at 10% distortion / 8 ohm
External speaker connector:




TRANSMITTER SECTION
RF output power: AM: 4 W
SSB: 12 W (PEP)
Modulation system: AM: High and low level class B modulation
SSB: Double balanced
FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:600 ohm / 4-pin (Male locking ring jack)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 197x-197x (Discontinued)
Main PCB:PTBM058COX by Cybernet Electronics Corporation
Sub PCBs: PTLD010COX - LED channel display
PTPW007COX - AVR/power supply board
PTSR009COX - SWR board
PTSW020COX - Channel selector board
PTSW026COX - Rotary switch board
Additional info:
Related documents:PLL: PLL02A
Sams Photofact #:CB-184 (April 1978)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
An inside picture of Colt 1000 ''Black Shadow SSB''
A rear picture of Colt 1000 ''Black Shadow SSB''
