| GENERAL |

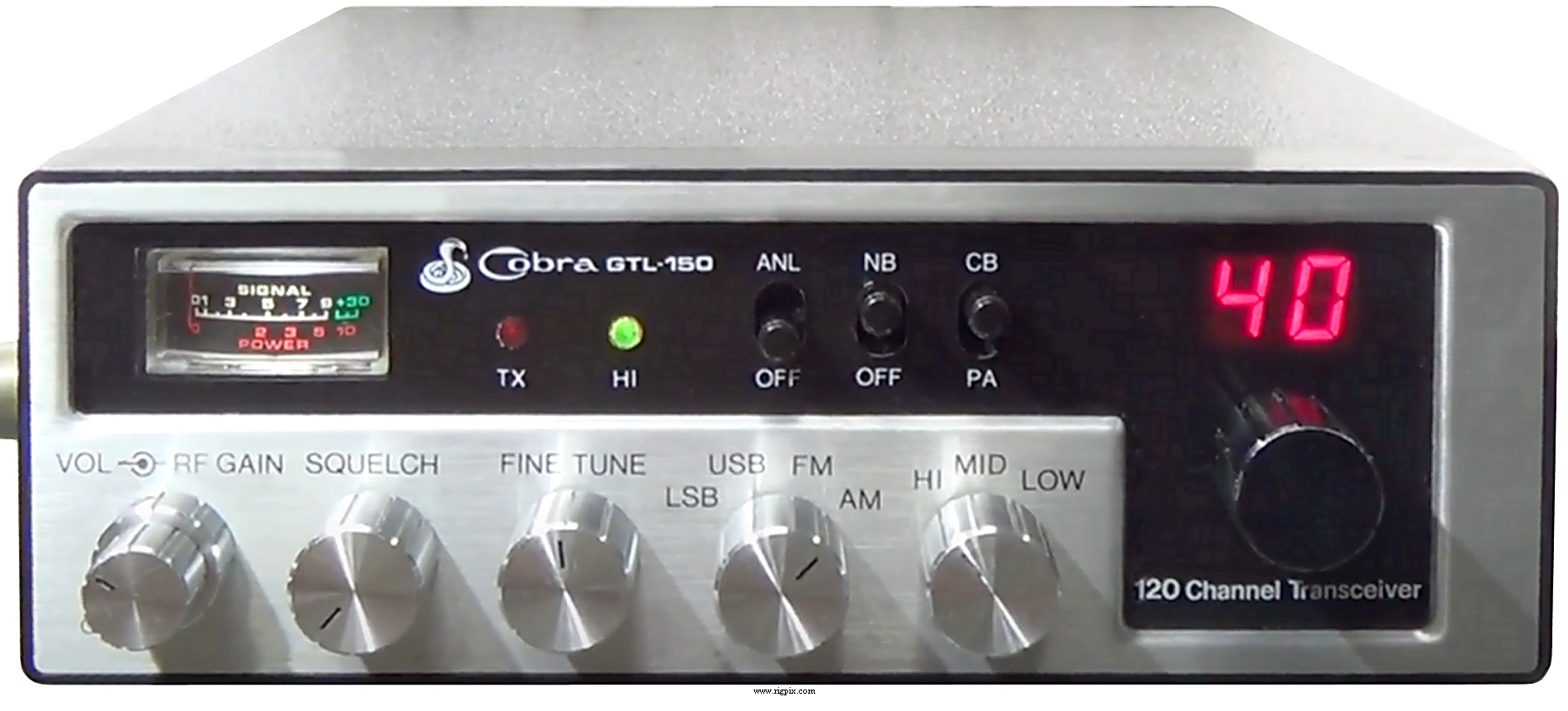

| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: |
26.515-27.855 MHz in three bands
| Low: | 26.515-26.955 MHz |
| Mid: | 26.965-27.405 MHz |
| High: | 27.415-27.855 MHz |
|
| Channels / tuning steps: | 120 (3*40) |
| Mode: | AM / FM / SSB |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | Max ? ppm |
| Clarifier or Delta tune: | ±? Hz "Fine tune" |
| Power supply: | 13.8 VDC (Male 2-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 190*65*250 mm (7.48*2.56*9.84") |
| Weight: | 2.1 Kg (4.63 lb), without mounting bracket |
| Other features: | PA. ANL/NB. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB)
IF: 10.695 MHz - Crystal filter: TEW MF10FD
Double conversion superheterodyne (AM/FM)
1st IF: 10.695 MHz - Crystal filter: TEW MF10FD
2nd IF: 455 KHz - Ceramic filter: Kyocera F455R 7A B
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
FM: 4 W
SSB: 12 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Main PCB: |
Version 1
PTBM059COX by Cybernet Electronics Corporation
Version 2
PTBM121D4X by Cybernet Electronics Corporation
Double sided. Through-hole components
|
| Sub PCBs: |
Version 1
Currently unknown
Version 2
PTOS011AOX - Crystal board
PTSW117FIX - Channel selector board
TP-DN60-HB - LED display board
|
| Additional info: | |
| Related documents: |
PLL: PLL02A
|
| Market / Approval: |
Export
No known approvals
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
