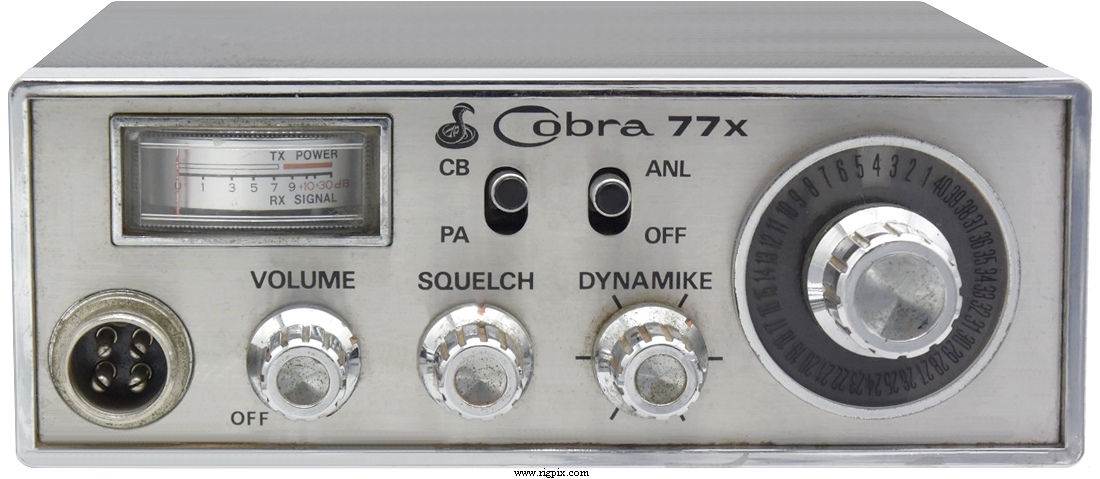

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (uPD858) |
| Frequency stability: | 0.005% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | No |

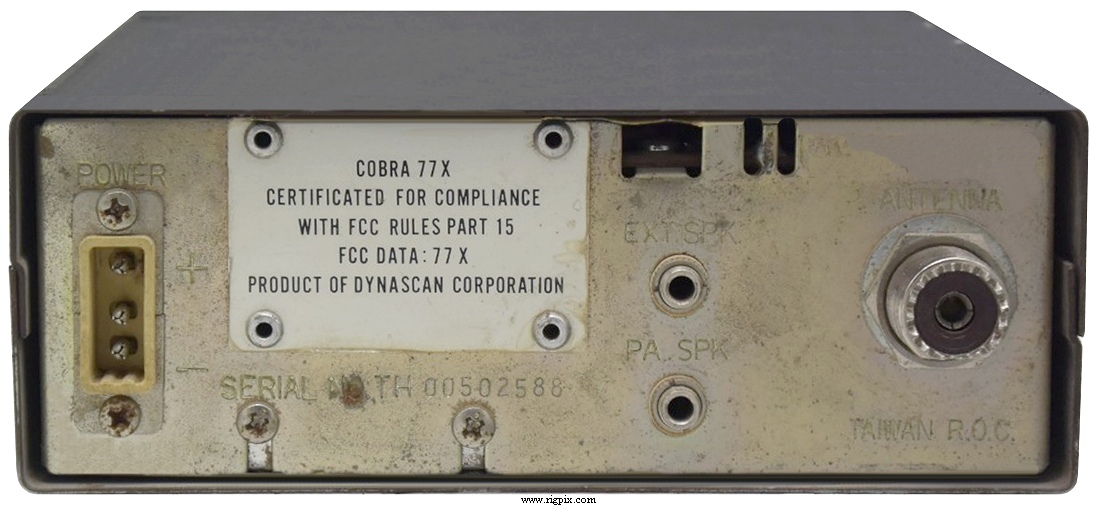

| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: 0.5-1.5 A
TX: 2 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 149*57*216 mm (5.88*2.25*8.5") |
| Weight: | 1.76 Kg (3.88 lb) |
| Other features: | PA. ANL |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 1 uV (10 dB S+N/N) |
| Squelch sensitivity: | Less than 1 uV (Threshold) |
| Selectivity: | 7 KHz (-6 dB)
10 KHz (-60 dB) |
| Image rejection: | 50 dB |
| AF output power / speaker: | 4 W at 7% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | High- and low-level Class B |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan, 197x-197x (Discontinued) |
| Main PCB: |
PC-169 by Uniden
|
| Sub PCBs: |
PC-193 - Channel selector board
|
| Additional info: | |
| Related documents: |
User manual (8.3 MB)
Schematic diagram (248 KB)
AF amplifier: Two 2SC1096
RF driver: 2SC2028
RF final: 2SC2029
|
| Known markets and approvals: |
USA
FCC Data: 77X
|
| Sams Photofact #: | CB-134 (August 1977) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
