| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: |
CB
26.965-27.405 MHz
NOAA weather channels (RX only)
162.400-162.775 MHz
|
| Channels / tuning steps: | CB: 40
WX: 10 weather channels |
| Mode: | CB: AM
WX: FM |
| Frequency control: | PLL (29LTD) |
| Frequency stability: | 0.005% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | 13.2 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: 0.3-1.2 A
TX: Max 1.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 184*71*219 mm (7.24*2.79*8.62") |
| Weight: | 1.8 Kg (3.97 lb) |
| Other features: |
Weather alert. 10 memories with scanning. "Soundtracker" for better
reception. Voltage/power/SWR-meter. PA. NB/ANL. Selectable blue,
red, amber or green display backlighting.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | <1 uV (10 dB S+N/N) |
| Squelch sensitivity: | Less than 1 uV (Treshold) |
| Selectivity: | 7 KHz (-6 dB)
10 KHz (-60 dB) |
| Image rejection: | 80 dB |
| AF output power / speaker: | 3 W at 7% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2013-201x (Discontinued) |
| Main PCB: | Single sided with through-hole components |
| Sub PCBs: | |
| Additional info: |

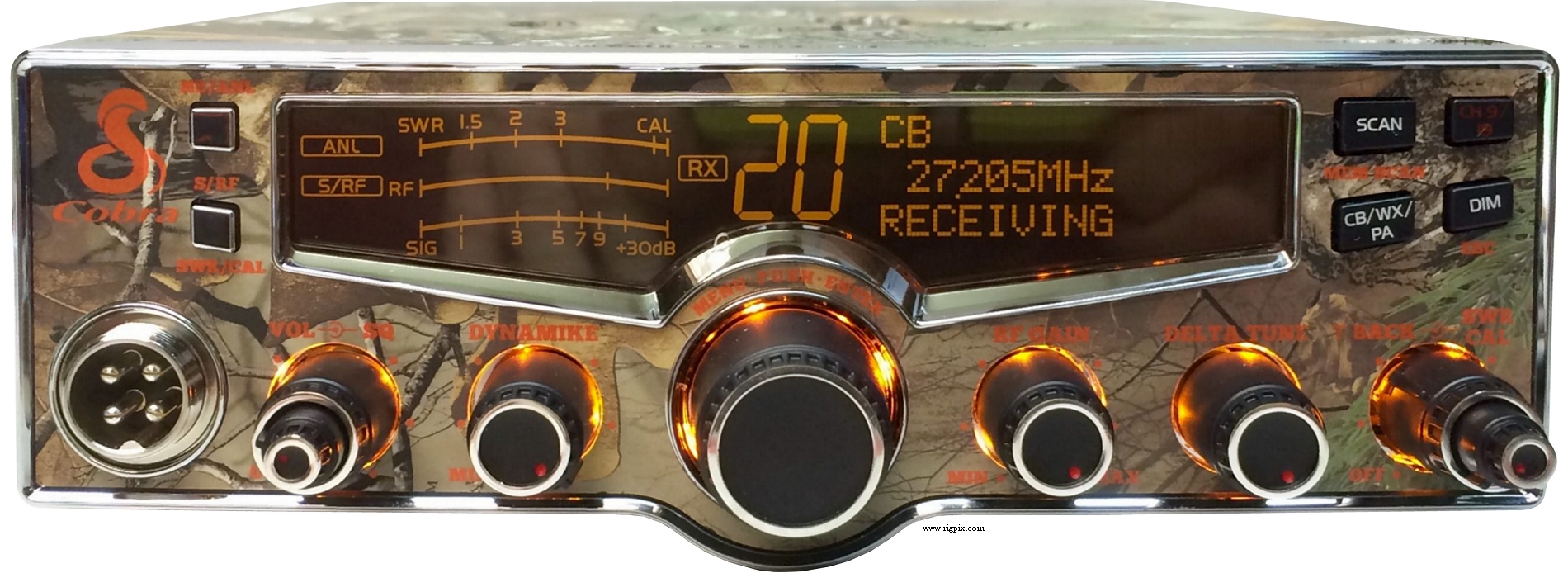

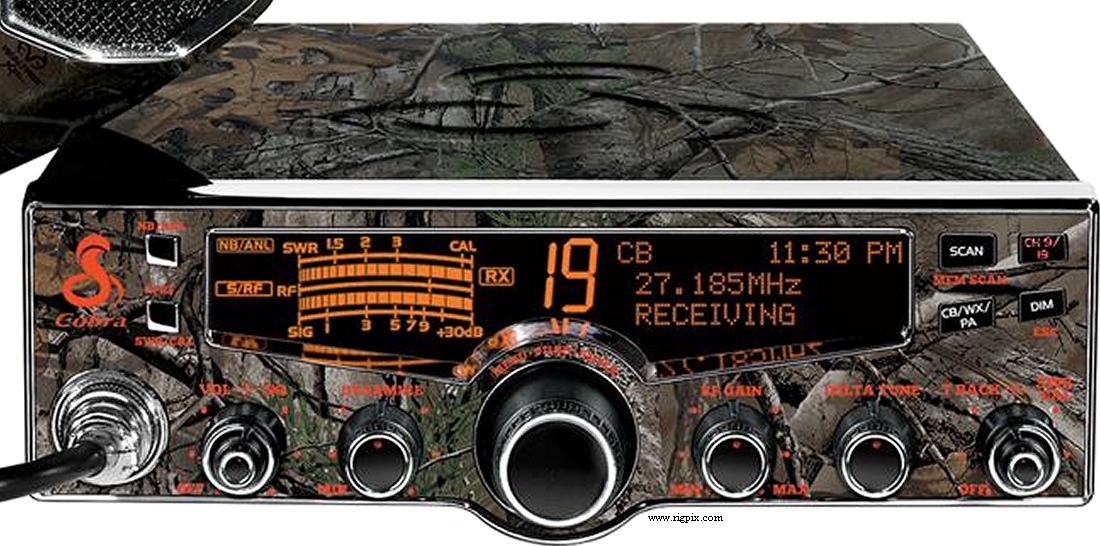

Same as the 29 LX but with a "Realtree" camo finish.
|
| Related documents: | |
| Market / Approval: |
USA
FCC ID: BBO3K229LTDW
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
