| GENERAL |

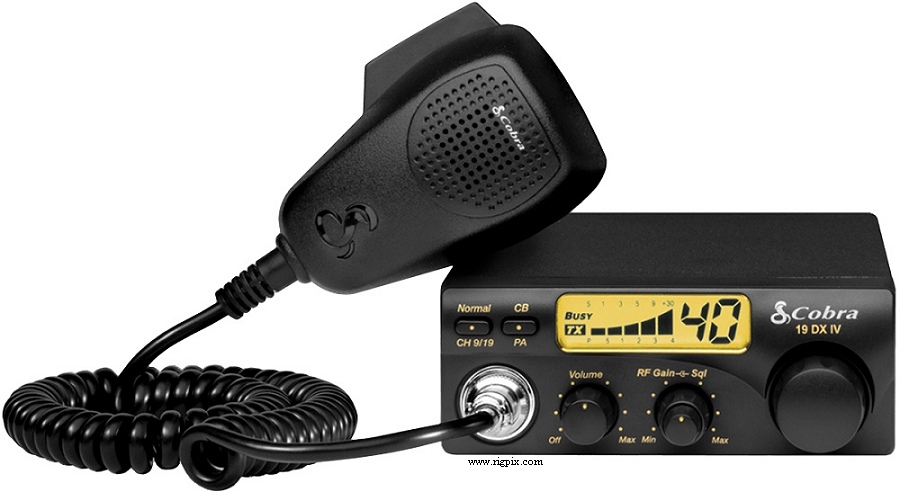

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL |
| Frequency stability: | 0.005% @ -30 to +65°C (-22 to +149°F) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: 0.9-1.2 A
TX: Max 1.4 A |

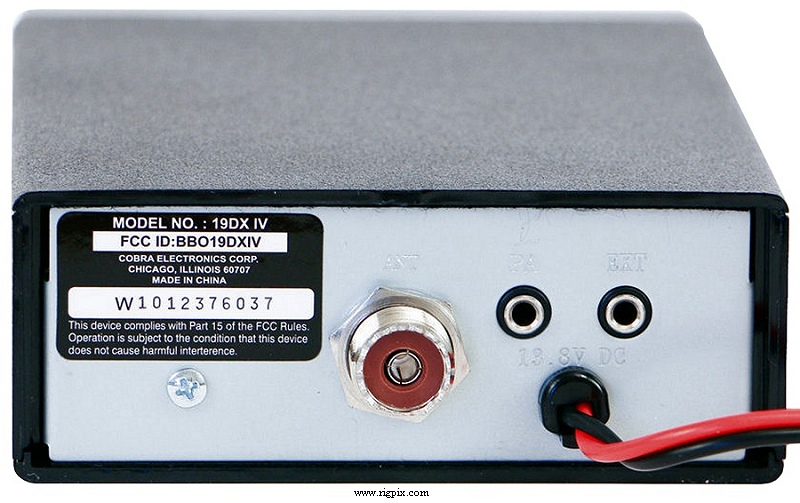

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 172*48*175 mm (6.75*1.88*6.88") |
| Weight: | 1.47 Kg (3.25 lb) |
| Other features: | PA. RF gain. Channel 9/19 switch. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 1 uV (10 dB S+N) |
| Squelch sensitivity: | |
| Selectivity: | 7 KHz (-6 dB), 10 KHz (-60 dB) |
| Image rejection: | 60 dB |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2014-20xx |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price 2018 in the US: $49.95.
|
| Related documents: |
User manual (1.3 MB)
Service manual (1.3 MB)
|
| Market / Approval: |
USA
FCC ID: BBO19DXIV
|
| Sams Photofact #: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
HG A1000
HG A1500
HG A2000
HG M73
HG M77
HG M75
HG M84
HG M84W
HG S100
HG S300
HG S500
|
21" base loaded magmount antenna
38" base loaded magmount antenna
54" base loaded magmount antenna
Replacement dynamic microphone
Noise cancelling microphone
Power microphone
Premium noise cancelling microphone
Premium noise cancelling microphone. Wood grain
External dynamic speaker
External noise cancelling speaker
External noise cancelling speaker with talkback
|
|
