| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL/CPU (uPD1720G) |
| Frequency stability: | ±0.005% (No temperature reference) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: ? mA
TX: Less than 2 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | Transceiver unit: ? mm (?")

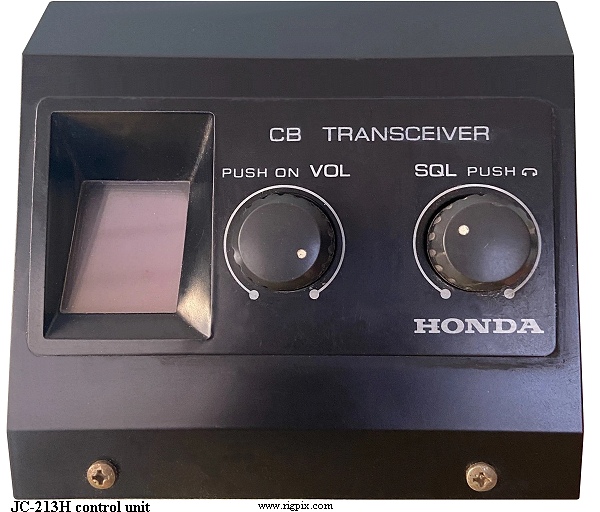

Control unit: ? mm (?") |
| Weight: | Transceiver unit: ? Kg (? lb)
Control unit: ? g (? oz) |
| Other features: | Made for Honda motorcycle installation. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 450 KHz
|
| Sensitivity: | Better than 2 uV (10 dB S/N) |
| Squelch sensitivity: | Less than 2.5 uV (Threshold) |
| Selectivity: | 20 KHz (-50 dB) |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / No internal speaker |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | 120 mV (For 70% modulation ±10%) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1987-199x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
Service manual (1.5 MB)
AF amplifier: uPC575C2
RF driver: 2SC2166
RF final: 2SC1945
|
| Known markets and approvals: |
USA
FCC ID: AX292AJC213H
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
