| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.225 MHz |
| Channels / tuning steps: | 23 (1-22 + 11A) |
| Mode: | AM |
| Frequency control: | PLL |
| Frequency stability: | 0.005% (No temperature reference) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: 400 mA
TX: Max 1.4 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |

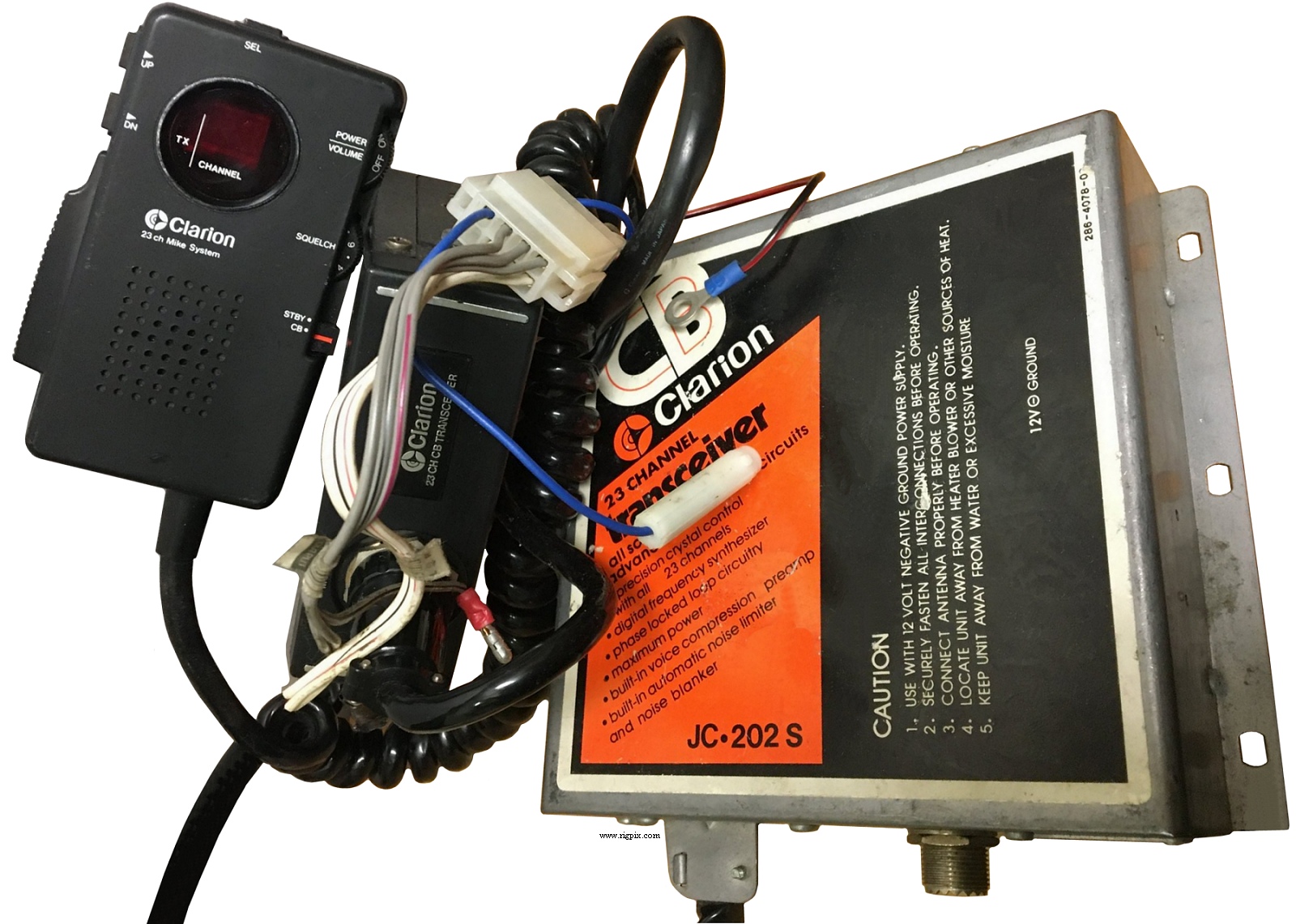

| Dimensions (W*H*D): |
Transceiver unit: 172*48*170 mm (6.77*1.89*6.69")
RCJ-005 connection box: 120*43*105 mm (4.72*1.69*4.13")
DMA-076 control microphone: 63*120*32 mm (2.48*4.72*1.26")
|
| Weight: |
Transceiver unit: 1.25 Kg (2.76 lb)
RCJ-005 connection box: 650 g (1.43 lb)
Control microphone: 320 g (11.3 oz)
|
| Other features: |
Built-in two-tone selcall transmit (1340 and 967.5 Hz).
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz - Ceramic filter: Murata CFU455H
|
| Sensitivity: | 0.5 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 6 KHz (-6 dB)
18 KHz (-40 dB) |
| Image rejection: | |
| AF output power / speaker: | 4 W at ?% distortion / No internal speaker |
| External speaker connector: | 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 18-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1977-1978 (Discontinued) |
| Main PCB: |
099-4836-01 by ?
Single sided with through-hole components
|
| Sub PCBs: | |
| Additional info: | |
| Related documents: | |
| Known markets and approvals: |
Sweden
Televerket
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
