| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM / SSB |
| Frequency control: | PLL (MC145106 or MM55126) |
| Frequency stability: | ±200 Hz @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | ±? KHz "Fine tune" |
| Power supply: | Mains: 117 VAC (Fixed power cord) |
| Current drain / power consumption: | RX: ? VA
TX: ? VA |
| Antenna impedance / connector: | 50 ohm / Two SO-239 (Selectable) |
| Dimensions (W*H*D): | 457*178*381 mm (18*7*15") |
| Weight: | 9.98 Kg (22 lb) |
| Other features: |
PA. NB. Direct entry keyboard. 10 memories & Scanning. Instant ch 9 access.
AMSIL function, silences AM heterodynes in SSB mode. Clock. SWR-meter.
Dimmer. Intercom. Optional frequency counter.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 10.695 MHz
|
| Sensitivity: |
AM: 0.35 uV (10 dB S+N/N)
SSB: 0.25 uV (10 dB S+N/N)
|
| Selectivity: |
AM: 4.4 to 5.4 KHz (-3 dB)
SSB: 2.8 KHz (-3 dB)
Adjacent channel: 65 dB
|
| Image rejection: | 80 dB |
| AF output power / speaker: | 4 W at ?% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | AM 4 W (Carrier)
12 W (PEP) |
| Modulation system: |
AM: Class C with a closed loop Servo Amplitude Modulator (SAM)
SSB: Linear class AB with ALC
|
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1977-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |

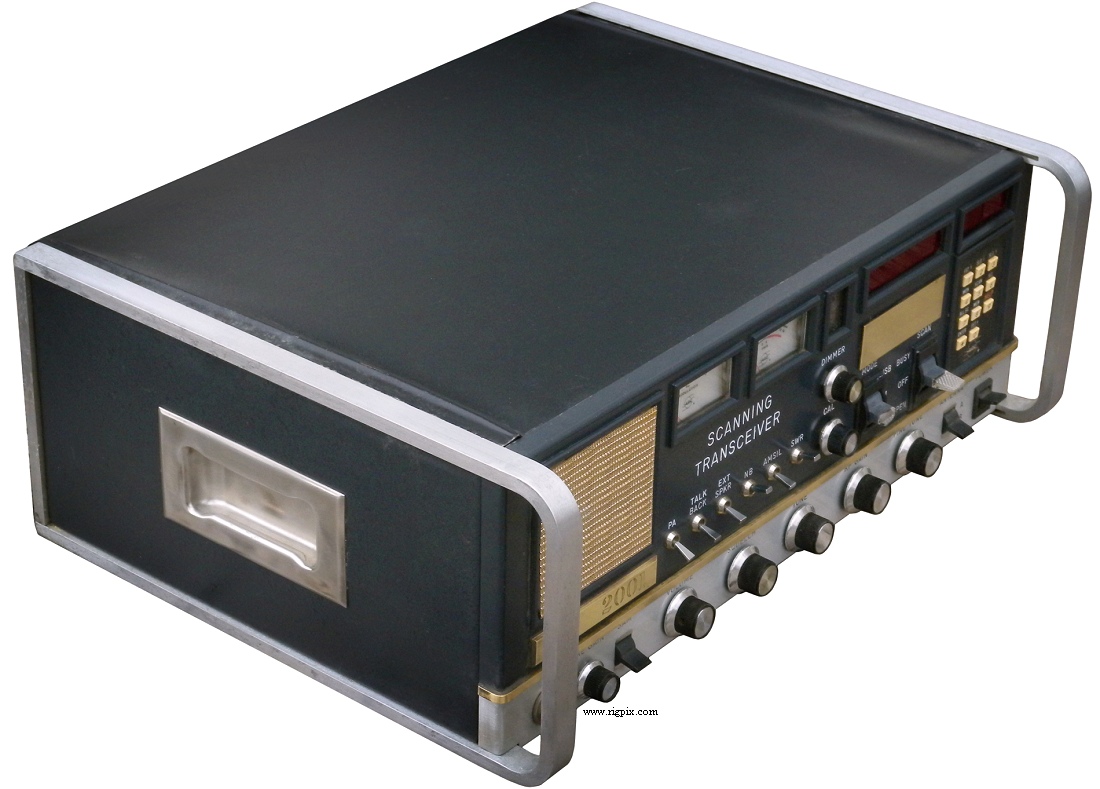

This beast of a CB transceiver is rare with less than 1000 manufactured.
A modified Astatic D104 UG8 was included as standard with the purchase.
|
| Related documents: |
User and service manuals (7.2 MB)
PLL: MC145106
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
AFR 2001
|
Internal frequency counter
|
|
