Alan 54E

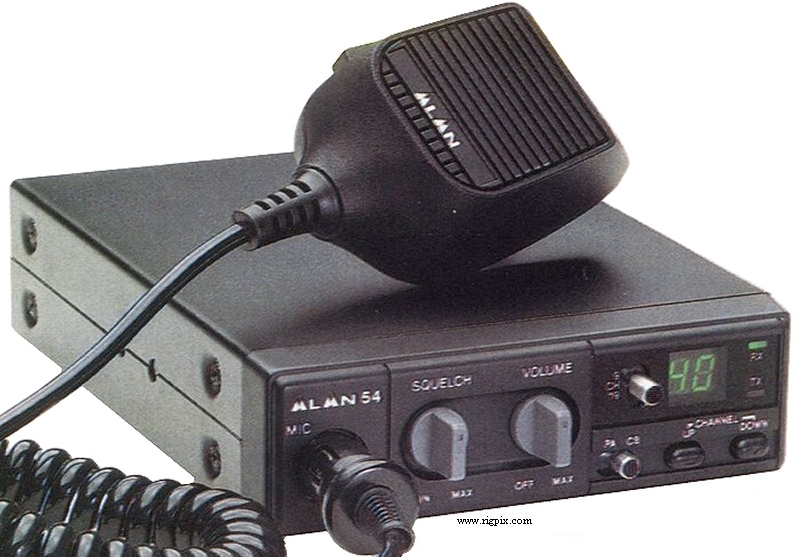

A picture of Alan 54E

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.405 MHz
Channels/tuning steps:40
Mode:FM
Frequency control:PLL
Frequency stability:?%
Power supply:12.4-15.1 VDC
Current drain/power consumption:RX: ? mA
TX: Max 900 mA
Antenna impedance/connector:50 ohm / SO-239
Dimensions (W*H*D):115*31*170 mm (4.53*1.22*6.69")
Weight:750 g (1.65 lb)
Other features:




RECEIVER SECTION
Receiver system:Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:0.5 uV (10 dB S/N)
Selectivity:
Image rejection:
AF output power/speaker:? W at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:4 W
Modulation system:
Max FM deviation:? KHz
Spurious emissions:Less than -? dB
Microphone impedance/connector:? ohm / ?-pin DIN
Microphone input sensitivity:? mV




MISCELLANEOUS
Manufactured:199x-199x (Discontinued)
Main PCB:
Additional info:
Related documents:
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options/Accessories:
- -
