| GENERAL |

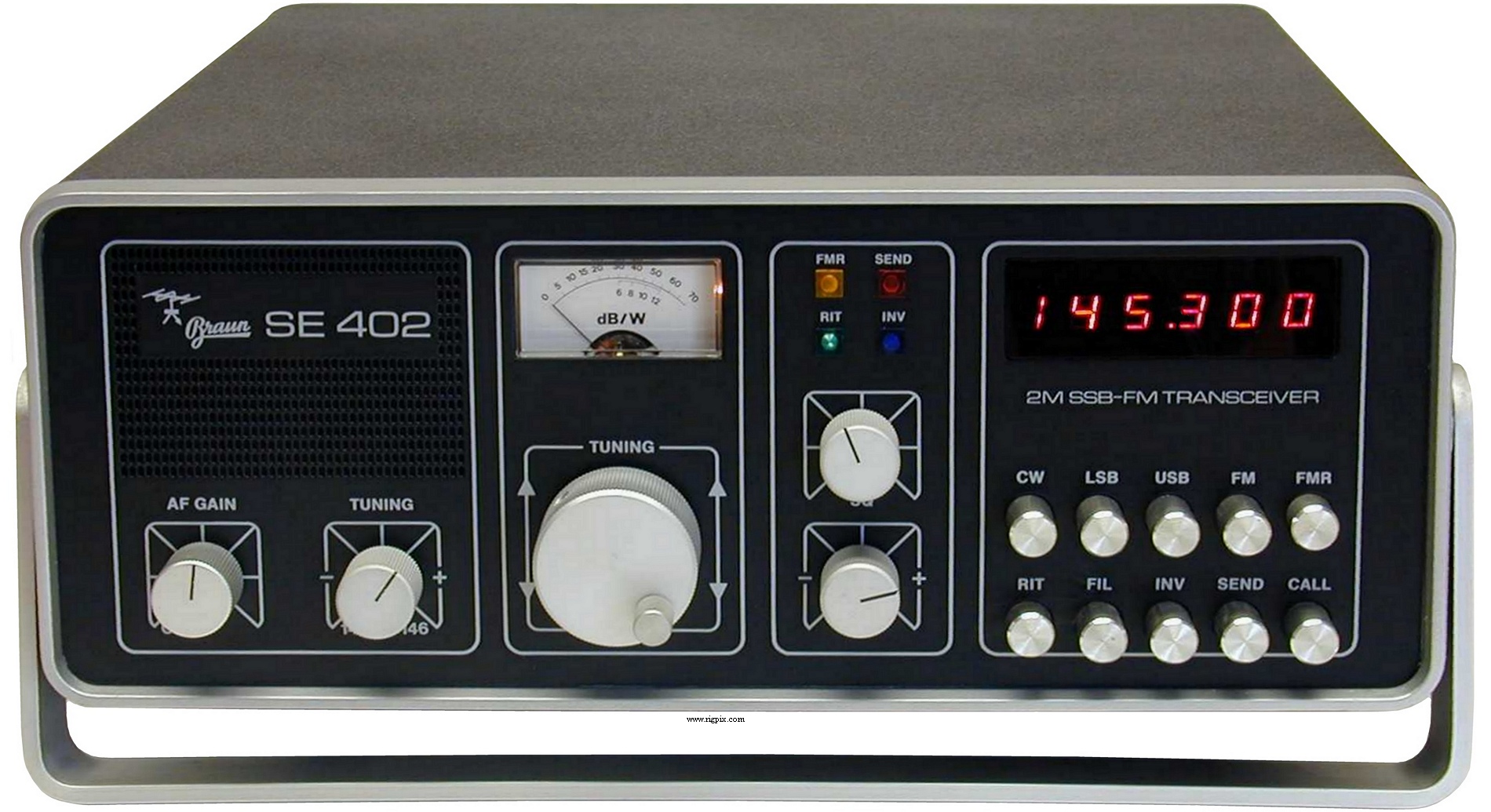

| Type: | Amateur VHF transceiver |
| Frequency range: |
TX: 144-146 MHz
RX: 144-146 MHz
|
| Tuning steps: | Continuous |
| Frequency stability: | Max 100 Hz per 30 minutes |
| Mode: | FM / SSB / CW |
| Channels / memory management: | None |
| Repeater shift / offset: | -600 KHz |
| Power supply: | Mains: 220 VAC (2-pin connector)
or 13.8 VDC (4-pin connector) |
| Current drain / power consumption: | RX: Max 1.4 A @ 13.8 VDC
TX: Max 2.9 A @ 13.8 VDC |
| Antenna impedance / connector: | 50-75 ohm / SO-239 (M-jack) |
| Dimensions (W*H*D): | 305*120*270 mm (12*4.72*10.63") |
| Weight: | 7.3 Kg (16 lb) |
| Other features: | 1750 Hz tone call. Tone hi-cut. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 10.7 MHz
|
| Sensitivity: |
FM: 0.15 uV (10 dB S/N)
SSB/CW: 0.06 uV (10 dB S/N)
|
| Squelch sensitivity: | |
| Noise figure: | 2.5 dB (1.8 kTo) |
| Selectivity: |
FM: 15 KHz (-6 dB)
SSB/CW: 2.4 KHz (-6 dB)
|
| Image rejection: | |
| AF output power / speaker: | 2 W at ?% distortion / ? ohm |
| External speaker connector: | 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| FM: | 10 W |
| SSB (PEP): | 10 W |
| CW: | 10 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz (2-10 KHz internally adjustable) |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 200-1000 ohm or Hi-Z / 5-pin DIN (180°) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | West Germany, 1977-197x (Discontinued) |
| Additional info: |
New price 1977 in West Germany: DM 2498.00
|
| Related documents: | User manual (18.5 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
