| GENERAL |

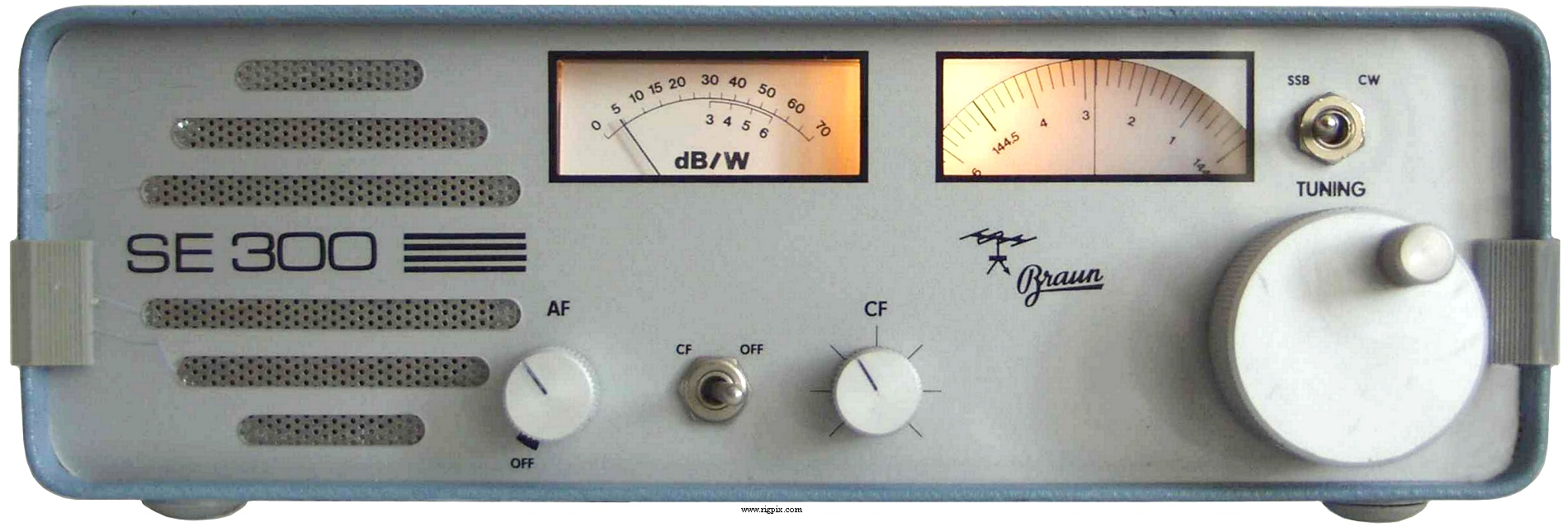

| Type: | Amateur VHF transceiver |
| Frequency range: |
TX: 144-146 MHz
RX: 144-146 MHz
|
| Tuning steps: | Continuous |
| Frequency stability: | ±? ppm |
| Mode: | USB / CW |
| Channels / memory management: | None |
| Repeater shift / offset: | No |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: Max 320 mA
TX: Max 1.6 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 215*68*230 mm (8.46*2.68*9.06") |
| Weight: | ? Kg (? lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 10.7 MHz
|
| Sensitivity: | 0.11 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: |
2.4 KHz (-6 dB)
4.4 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 4 W at ?% distortion / ? ohm |
| External speaker connector: | 2-pin DIN |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 10 W (PEP) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -80 dB |
| Microphone impedance / connector: | ? ohm / 5-pin DIN (180°) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | West Germany, 197x-197x (Discontinued) |
| Additional info: | New price 1975 in Sweden: SEK 3500:- |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
