Uniden Bearcat UBC-860XLT

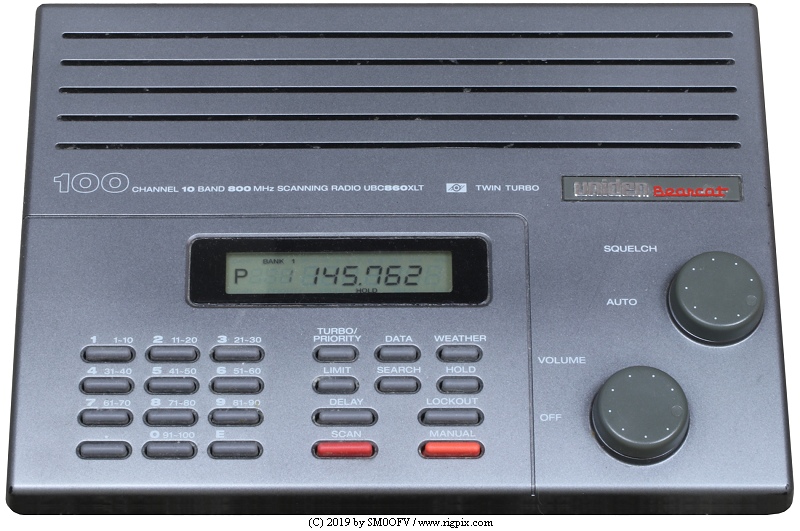

A picture of Uniden Bearcat UBC-860XLT

SPECIFICATIONS

GENERAL
Type:VHF/UHF receiver/scanner
Frequency range:66-88 / 108-174 / 406-512 / 806-956 MHz
Tuning steps:5 or 12.5 KHz depending on band
Frequency stability:? ppm
Mode:AM / FM
Channels / memory management: 100 regular in 10 banks @ 100 channels per second
10 priority
10 skip
7 NOAA weather channels
RAM storage with supercap backup (~7 days memory retention)
Power supply:10 VAC from separate AC adapter (AC-144U)
Current drain / power consumption:? mA
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):229*60*190 mm (9*2.38*7.5")
Weight:626 g (1.38 lb)
Other features:Data skip function




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.8 MHz
2nd IF: 450 KHz - Ceramic filter: Murata SFP450D
Sensitivity: 66-88 MHz: 0.3 uV (12 dB SINAD)
108-137 MHz: 0.8 uV (12 dB SINAD)
137-174 MHz: 0.4 uV (12 dB SINAD)
406-512 MHz: 0.5 uV (12 dB SINAD)
806-956 MHz: 0.5 uV (12 dB SINAD)
Selectivity:20 KHz (-6 dB)
30 KHz (-50 dB)
Image rejection:
AF output power / speaker:Max 1.2 W at 10% distortion / 8 ohm
External speaker connector:3.5 mm, 8 ohm




MISCELLANEOUS
Manufactured:Philippines, 1995-200x (Discontinued)
Additional info:
Related documents:FM-IF: MC3361
Modifications and fixes:
Options / Accessories:
AC-144U
AT-248
ESP-25
AC adapter. 10 VAC, 300 mA
Telescoping antenna
External speaker, 8 ohms
