| GENERAL |
| Type: | HF/VHF/UHF receiver/scanner |
| Frequency range: |
Europe
25-512 / 806-960 / 1240-1300 MHz
USA (Cellular blocked)
25-512 / 758-824 / 849-869 / 894-960 / 1240-1300 MHz
|
| Tuning steps: | 5 / 6.25 / 7.5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz |
| Frequency stability: | ? ppm |
| Mode: | AM / FM / WFM |
| Channels / memory management: |
9000 dynamic @ 100 channels per second
10 search ranges
Alpha tags (16 characters)
|

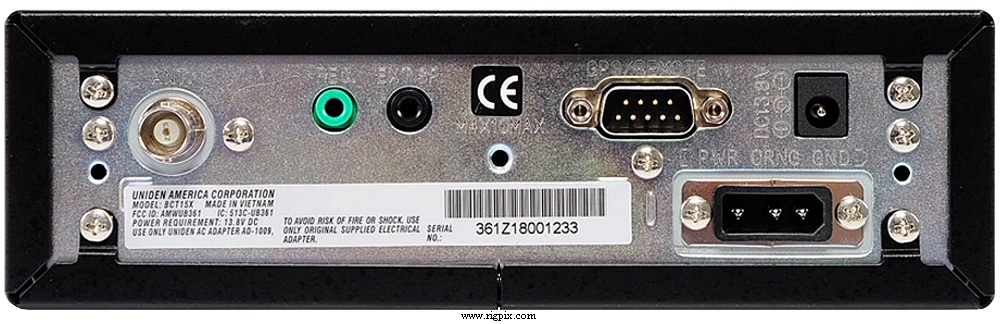

| Power supply: | 11-16.6 VDC (Male 3-pin jack and a male barrel jack, center positive) |
| Current drain / power consumption: | Less than 500 mA |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 184*56*154 mm (7.24*2.2*6.06") |
| Weight: | 1.6 Kg (3.53 lb) |
| Other features: |
Beartracker warning system. "Close call" RF capture technology. RS-232C. Tracks
Motorola type I, II. EDACS, SCAT and LTR systems. CTCSS/PL and DCS. Repeater
reverse. S.A.M.E Weather alert. FIPS code. GPS-enabled for location-related scanning.
When a GPS-unit is connected, it can also alert at areas of special interest, such as dangerous
intersections, school zones or general points of interest. Band scope. Individual channel
volume offset. Attenuator (20 dB).
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Triple conversion superheterodyne
1st IF: 380/265 MHz
2nd IF: 10.8 MHz
3rd IF: 450 KHz
|
| Sensitivity: |
AM (No S/N reference)
25-28 MHz: 0.4 uV
108-137 MHz: 0.3 uV
225-380 MHz: 0.3 uV
FM (No SINAD reference)
28-54 MHz: 0.3 uV
72-76 MHz: 0.2 uV
137-174 MHz: 0.3 uV
216-225 MHz: 0.3 uV
380-512 MHz: 0.3 uV
758-960 MHz: 0.3 uV
1240-1300 MHz: 0.4 uV
WFM (No SINAD reference)
54-72 MHz: 0.6 uV
76-108 MHz: 0.5 uV
174-216 MHz: 0.5 uV
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Vietnam, 2009-202x |
| Reset procedure: |
With the scanner switched off, press and hold the [2], [9], and [HOLD] buttons at the
same time and turn on the scanner. Wait for the screen to show the message "All Memory
Clear Please Wait". After a few seconds, the scanner has been reset to its factory settings.
NB! A factory reset deletes all user-defined channels, frequencies, and custom settings.
|
| Additional info: |
FCC ID: AMWUB361 (Early) and AMWUB361A (Later)
New price, october 2026 in Sweden: SEK 3695:-
New price, october 2026 in the US: $239.99
New price, october 2026 in the UK: £269.95
New price, october 2026 in The Netherlands: €339.95
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
