Uniden Bearcat BC-100XLT

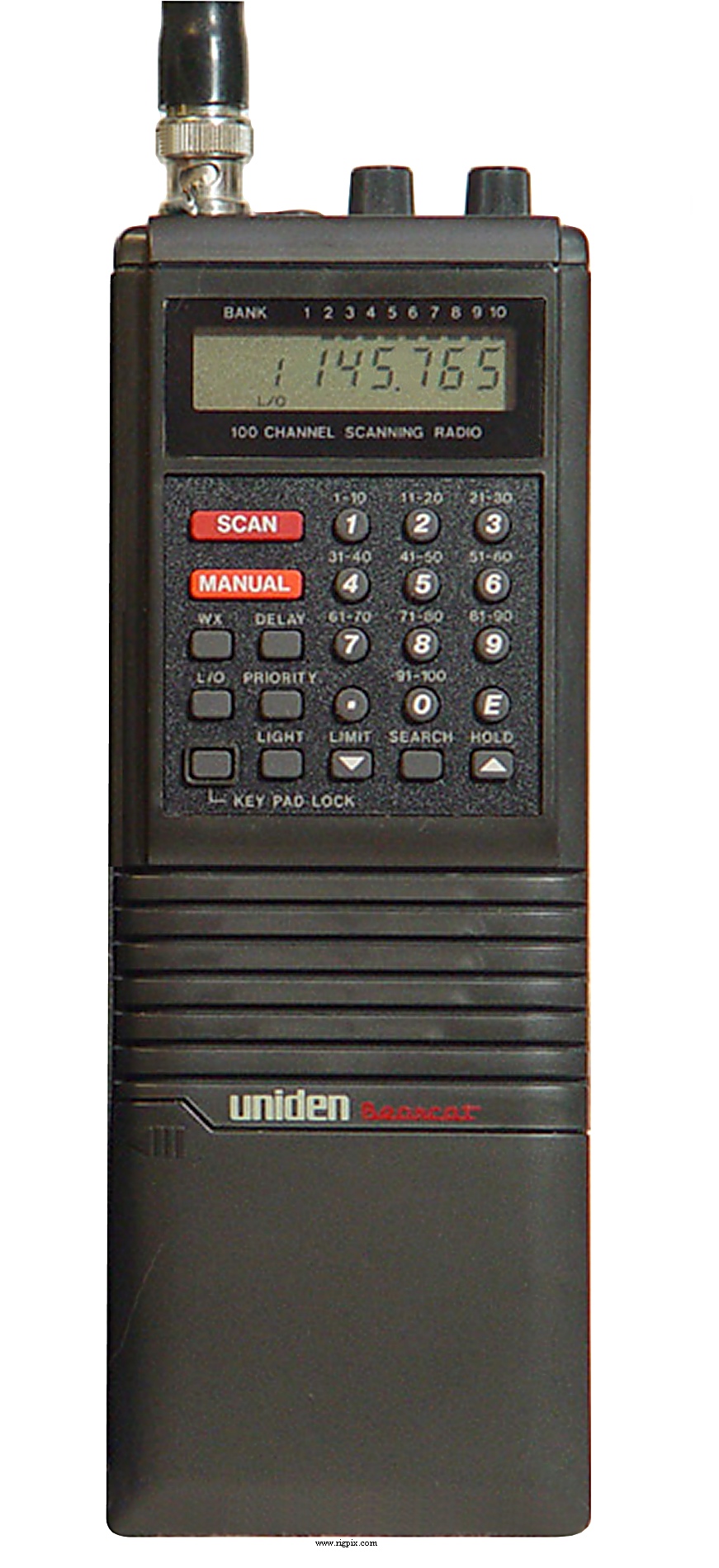

A picture of Uniden Bearcat BC-100XLT

SPECIFICATIONS

GENERAL
Type:HF/VHF/UHF receiver/scanner
Frequency range:29-54 / 108-174 / 406-512 MHz
Tuning steps:? KHz
Frequency stability:? ppm
Mode:AM/FM
Channels/memory management: 100 regular in 10 banks @ 15 ch/second
10 priority
7 NOAA weather channels
Capacitor backup. Up to 30 minutes memory retention without battery pack
Power supply:7.2 VDC (NiCd battery pack) or 12 VDC external
Current drain/power consumption:? mA
Antenna impedance/connector:50 ohm / BNC
Dimensions (W*H*D):70*190*32 mm (2.75*7.5*1.25")
Weight:567 g (1.25 lbs)
Other features:Backlit display.




RECEIVER SECTION
Receiver system:Double conversion superheterodyne
1st IF: 10.85 MHz
2nd IF: 450 KHz
Sensitivity: AM (12 dB SINAD)
118-136 MHz: 0.8 uV
FM (12 dB SINAD)
29-54 MHz: 0.4 uV
136-174 MHz: 0.4 uV
406-512 MHz: 0.5 uV
Selectivity:50 KHz (-55 dB)
Image rejection:
AF output power/speaker:480 mW at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Taiwan (early) and Philippines (later), 1987-199x (Discontinued)
Additional info:FCC ID: AMW3K3-UB109A
Related documents: User manual (548 KB)
Service manual (2.2 MB)
Modifications:
Reviews:
Options/Accessories:
AD-140UP
AT-094
BP-205
PS-001
AC adapter/charger
Flexible antenna
NiCd battery pack. 7.2 V, 600 mAh
Vehicle power cord
