| GENERAL |

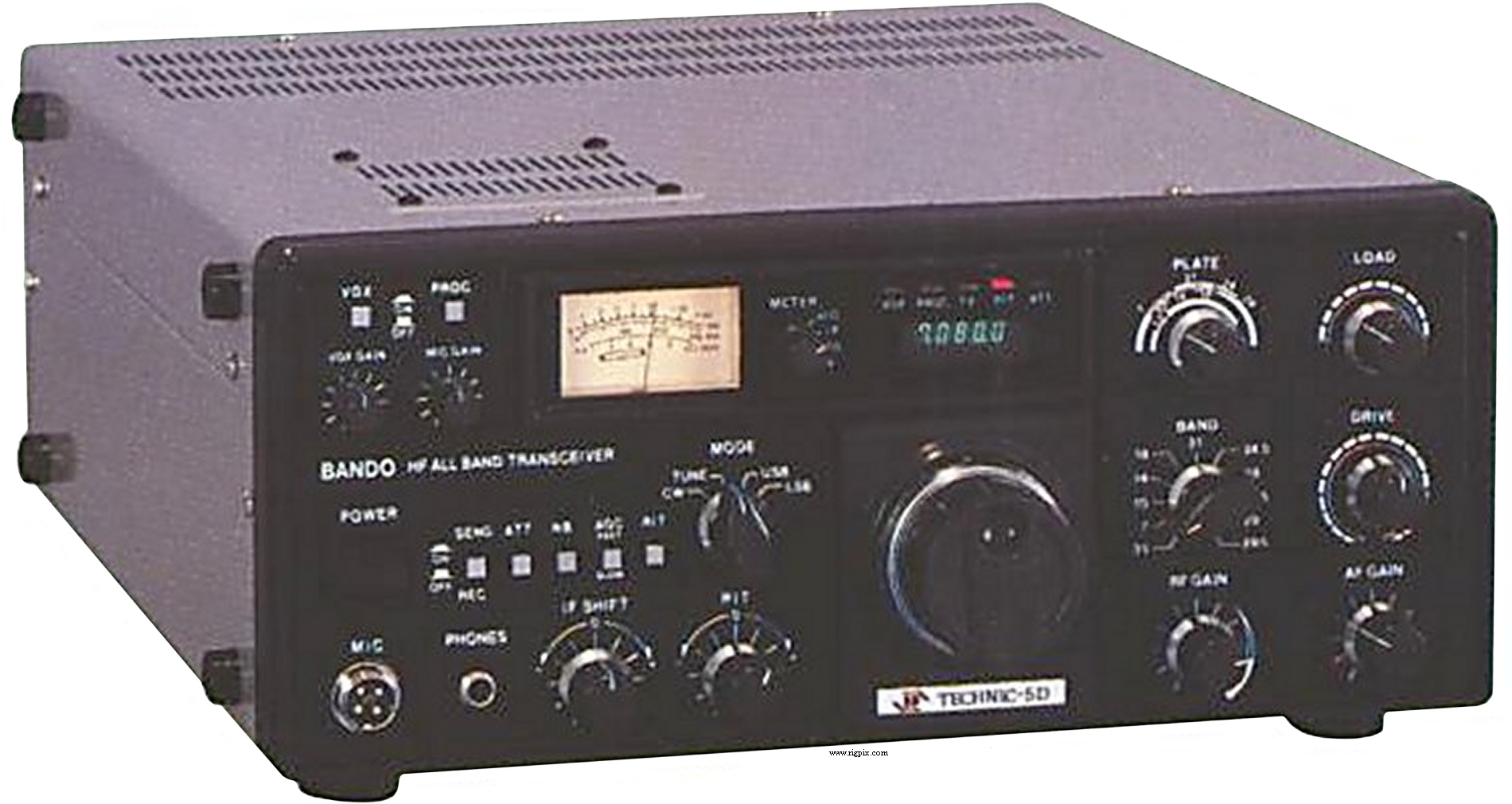

| Type: | Amateur HF transceiver |
| Frequency range: |
10-80 m + WARC
| 80 m: | 3.5-3.55 MHz |
| 40 m: | 7.0-7.1 MHz |
| 30 m: | 10.1-10.15 MHz |
| 20 m: | 14.5-14.35 MHz |
| 17 m: | 18.068-18.168 MHz |
| 15 m: | 21.0-21.45 MHz |
| 12 m: | 24.89-24.99 MHz |
| 10 m: | 28.0-29.7 MHz |
|
| Tuning steps: | Continuous |
| Frequency stability: |
Within 300 Hz for the first 30 minutes after 1 minute warmup
Within 100 Hz per 30 minutes thereafter
|
| Mode: | SSB / CW |
| Channels / memory management: |
None
|
| Repeater shift / offset: | No |
| Power supply: | Mains: 110 / 220 VAC |
| Current drain / power consumption: | RX: 30 W
TX: Max 280 W |
| Antenna impedance / connector: | 50-75 ohm / SO-239 |
| Dimensions (W*H*D): | 335*138*350 mm (13.19*5.43*13.78") |
| Weight: | 13.5 Kg (29.76 lb) |
| Other features: | VOX. NB. Attenuator. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
|
| Sensitivity: | 0.25 uV (10 dB S/N) |
| Selectivity: |
SSB:
2.4 KHz (-6 dB)
4.4 KHz (-60 dB)
|
| Image rejection: | >50 dB |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8-16 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -40 dB |
| Microphone impedance / connector: | 500 ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Korea, 1987-19xx (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (1.9 MB, in Korean)
RF driver: 12BY7-A
RF finals: Two 6146A, 6146B or 6146W
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
