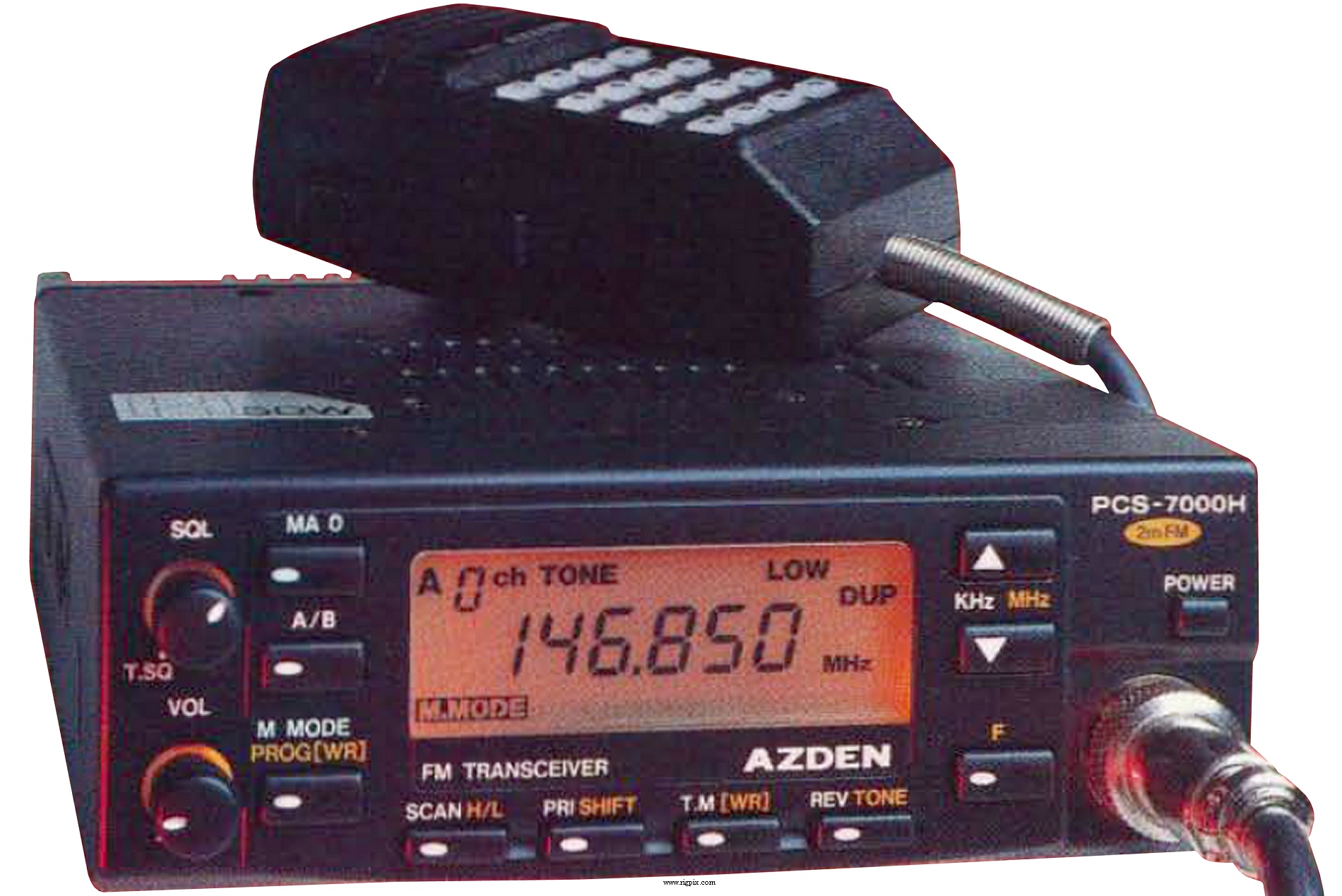

| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
Europe
TX: 144-146 MHz
RX: 118-174 MHz
USA
TX: 140-150 MHz
RX: 118-174 MHz
|
| Tuning steps: | 5 / 10 / 15 / 20 KHz USA)
12.5 / 25 / 37.5 / 50 KHz (Europe) |
| Frequency stability: | ±? ppm |
| Mode: | TX: FM
RX: AM / FM |
| Channels / memory management: |
20 regular in two banks
1 temporary
2 scan edge pairs (Program scan)
1 priority
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±600 KHz (Programmable) |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: Max 600 mA
TX: Max 10 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 140*50*182 mm (5.5*1.97*7.16") |
| Weight: | 1.4 Kg (3.09 lb) |
| Other features: | CTCSS/PL encoder. 1750 Hz tone call (Europe). |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 16.9 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 1 uV (10 dB S/N)
FM: 0.19 uV (12 dB SINAD)
|
| Selectivity: | 12 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1993-199x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (881 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
PCM-463
PCM-499
?
|
Standard hand microphone
Hand microphone with DTMF keypad
CTCSS/PL tone squelch (decoder) unit
|
|
