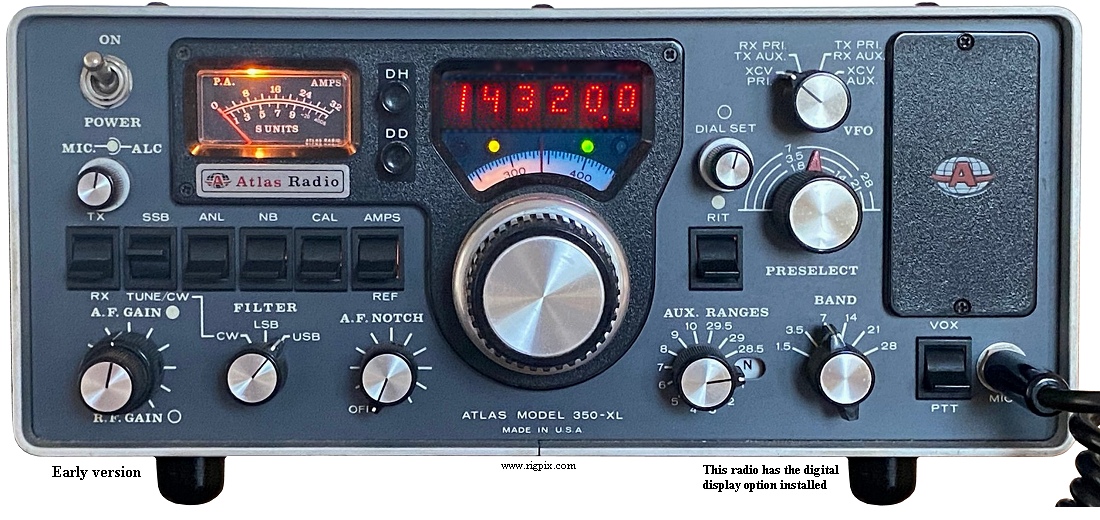

| GENERAL |
| Type: | Amateur HF transceiver |
| Frequency range: |
10-160 m in nine bands:
1.5-2.0 MHz
3.5-4.0 MHz
7.0-7.5 MHz
14.0-14.5 MHz
21.0-21.5 MHz
28.0-28.5 MHz
28.5-29.0 MHz
29.0-29.5 MHz
29.5-30.0 MHz
Plus 10 optional 500 KHz band segments between 2-23 MHz
|
| Tuning steps: | Continuous |
| Frequency stability: | ±? ppm |
| Mode: | SSB / CW |
| Channels / memory management: |
12 optional XTAL controlled with plug-in unit (311)
|
| Repeater shift / offset: | No |
| Power supply: | 12-14 VDC |
| Current drain / power consumption: | RX: Max 600 mA (Without digital display unit)
RX: Max 1.4 A (With digital display unit)
TX: 32 A (Peak) |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 320*140*410 mm (12.5*5.25*16") |
| Weight: | 8.2 Kg (18 lb) |
| Other features: | Full QSK. VOX. ANL. NB. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
1st IF: 5.595 MHz
|
| Sensitivity: | 0.4 uV (10 dB S+N/N) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | 60 dB |
| AF output power / speaker: | 6 W at 10% distortion / 4 ohm |
| External speaker connector: | 1/4" jack, 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| 1.8-23 MHz | 28-30 MHz |
| SSB (PEP): | >160 W (350 W input) | >100 W (250 W input) |
| CW: | ? W | ? W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | Hi-Z / 3-pole (1/4" jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 1977-1978 (Discontinued) |
| Additional info: |
Approximately 1200 units were manufactured.
Introductory price, june 1977 in the US: $895.00 (Less options)
New price, october 1977 in the US: $995.00 (Less options)
New price, march 1978 in the US: $995.00 (Less options)
New price 1979 in Sweden: SEK 7358:-
|
| Related documents: |
User manual (6 MB)
LED display: HP 5082-7300
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
302
305
311
350PS
DD6-XL
DMK-XL
|
Digital clock and phone patch accessory
Auxilary plug-in VFO
Plug-in XTAL oscillator unit
Matching power supply
Digital display unit
Mobile mounting kit
|
|
