| GENERAL |

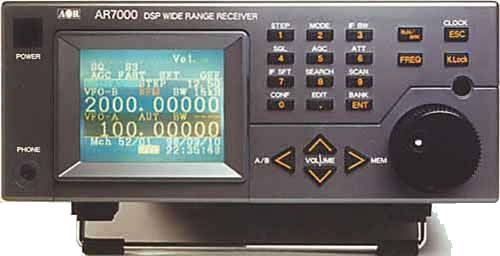

| Type: | HF/VHF/UHF receiver/scanner |
| Frequency range: |
0.1-2000 MHz (Cellular blocked in the USA)
|
| Tuning steps: | 10 Hz to 1 MHz in 10 Hz increments KHz |
| Frequency stability: | ? ppm |
| Mode: | AM / FM / WFM / SSB / CW + analog TV |
| Channels / memory management: |
1500 regular in 15 banks with alpha tags @ 20 channels per second
8 search pairs (Program scan)
Priority function
|
| Power supply: | 12-14 VDC |
| Current drain / power consumption: | Max 1.5 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 220*90*240 mm (8.66*3.54*9.45") |
| Weight: | 3.5 Kg (7.72 lb) |
| Other features: |
3.1" color LCD. Spectrum display. RS232C. 16 bit DSP. IR remote controller.
PAL & NTSC video output. Clock and timer. IF-shift. Attenuator.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Triple conversion superheterodyne
1st IF: 275.4 MHz, 782.28 MHz
2nd IF: 45 MHz
3rd IF: 10.7 MHz (DSP)
|
| Sensitivity: |
AM (10 dB S/N)
0.1-0.7 MHz: 4.2 uV
0.7-20 MHz: 3.5 uV
20-1200 MHz: 1.3 uV
1200-2000 MHz: 4 uV
FM (12 dB SINAD)
0.1-0.7 MHz: 4 uV
0.7-20 MHz: 2 uV
20-1200 MHz: 0.56 uV
1200-2000 MHz: 1.6 uV
WFM (12 dB SINAD)
20-1200 MHz: 1.3 uV
1200-2000 MHz: 3.5 uV
SSB/CW (10 dB S/N)
0.1-0.7 MHz: 1.6 uV
0.7-20 MHz: 1.5 uV
20-1200 MHz: 0.5 uV
1200-2000 MHz: 2 uV
|
| Selectivity: |
Available bandwidths:
AM: 3 / 6 / 8 KHz
WFM: 150 KHz
SSB: 2 / 2.5 / 3 KHz
CW: 50 / 150 / 250 / 500 / 800 Hz
|
| Image rejection: | |
| AF output power / speaker: | 1 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1998-200x (Discontinued) |
| Additional info: |
New price 1998 in the US: $1459.95
|
| Related documents: | User manual (Draft) (157 KB) |
| Modifications and fixes: | |
| Reviews: | Monitoring Times: January 1999, page 92 |
| Options / Accessories: |
ABF-125
DA-3000
LA-320
LA-320M
MA-500
SA-7000
|
VHF airband filter (Bandpass: 108-136 MHz)
Discone antenna. 25-2000 MHz
Indoor active loop antenna. 1.6-15 MHz
MW element for LA-320. Adds 0.54-1.6 MHz
Mobile magmount antenna. 25-1000 MHz
Twin element passive wideband antenna
|
|
