| GENERAL |

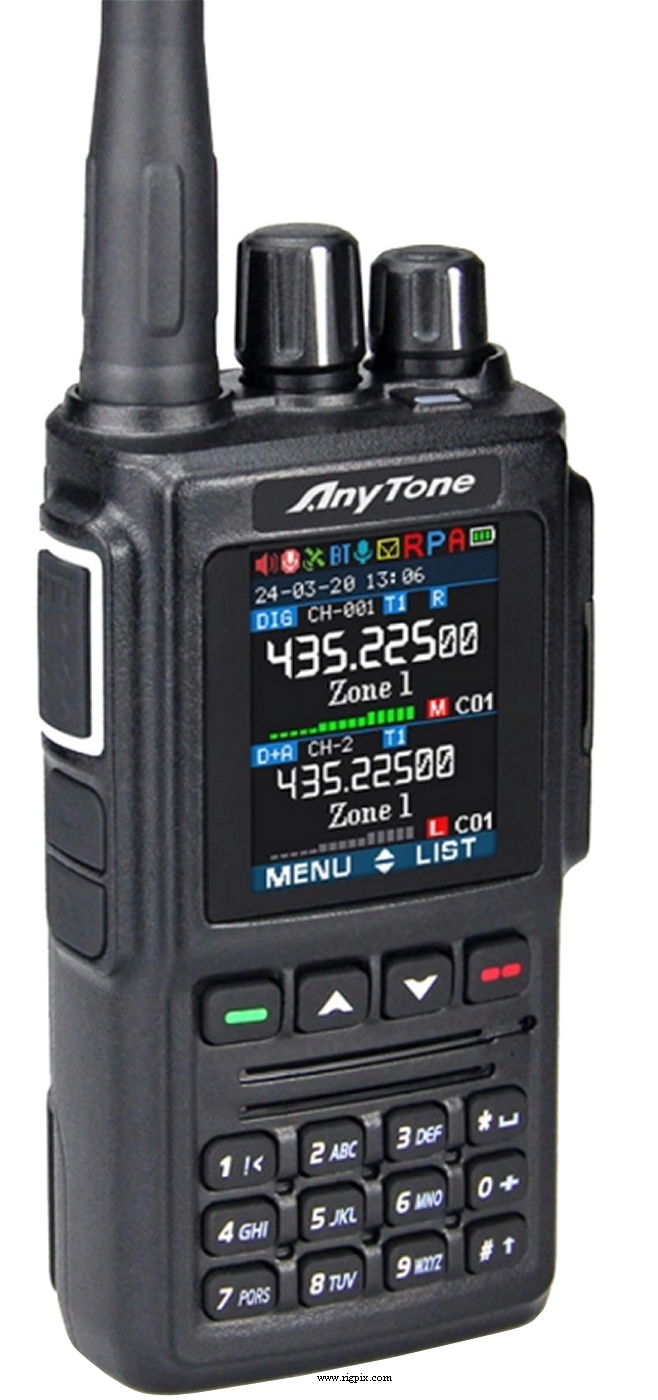

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
Europe
TX: 144-146 / 430-440 MHz
RX: 144-146 / 430-440 MHz
USA
TX: 144-148 / 420-450 MHz
RX: 144-148 / 420-450 MHz
|
| Tuning steps: | 5 / 6.25 KHz |
| Frequency stability: | ±1.5 ppm @ -20 to +55°C (-4 to +131°F) |
| Mode: | FM / NFM / DV (DMR) |
| Channels / memory management: |
4000 regular
|
| Repeater shift / offset: | Programmable |
| Power supply: | 7.4 VDC ±20% |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / SMA (Male) |
| Dimensions (W*H*D): | 54*104*36 mm (2.12*4.09*1.42") |
| Weight: | 220 g (7.76 oz), with battery pack |
| Other features: |
CTCSS/PL and DCS. 2-tone and 5-tone. DTMF. Voice recorder.
Messaging. Digital encryption. Vibralert. PC programmable.
VOX. APRS. USB type C jack. Weather alert.
GPS and Bluetooth options.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: |
FM: 0.25 uV (12 dB SINAD)
NFM: 0.35 uV (12 dB SINAD)
DV: 0.7 uV (BER 1%) / 0.3 uV (BER 5%)
|
| Squelch sensitivity: |
FM: 65 dB (Adjacent channel)
NFM: 60 dB (Adjacent channel)
|
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 1 W at 5% distortion / 16 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low 3 | Low 2 | Low 1 |
|---|
| 2 m: | 5 W | 2.5 W | 500 mW | 200 mW |
| 70 cm: | 4 W | 2.5 W | 500 mW | 200 mW |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dBc |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China (By Qixiang Electron Science & Technology Co. Ltd.), 2024-202x |
| Additional info: |
New price, may 2025 in Sweden: SEK 2195:-
|
| Related documents: |
User manual (1.7 MB)
Programming guide (1.9 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BC-158-4
EJX-0012
NA01
QB-56L
QB-56HL
QBC-56L
QHM-024
QT-0046
TX-0311
TX-0313
WWZZ-0029
|
Multi charger. 4-bay
Earphone
AC adapter (5 V, 2 A)
Li-Ion battery pack. 1800 mAh
Li-Ion battery pack. 2500 mAh
Desk charger
Speaker-.microphone
Type C charging/programming cable
12 cm antenna
38 cm antenna
Belt clip
|
|
