| GENERAL |

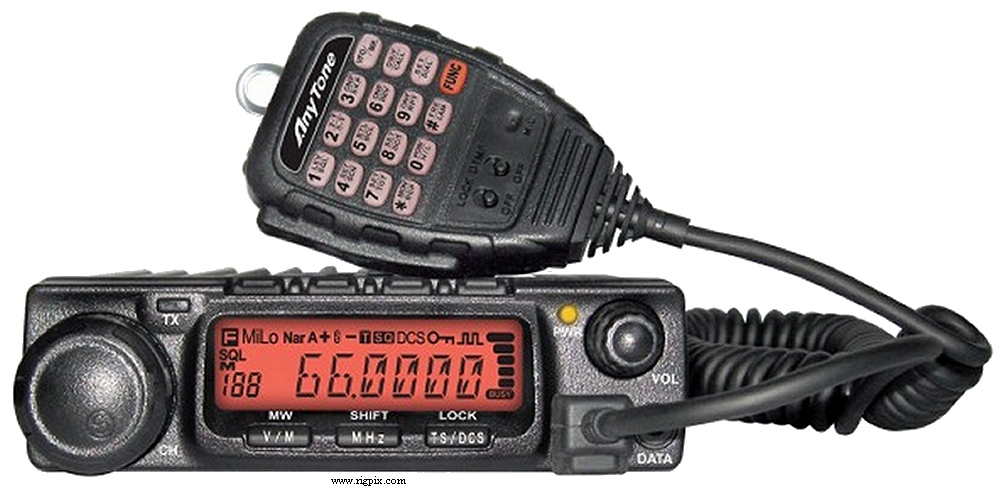

| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 66-88 MHz
RX: 66-88 MHz |
| Tuning steps: | 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM / NFM |
| Channels / memory management: |
200 regular
Non-volatile EEPROM storage
|
| Repeater shift / offset: | Programmable |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: Max 600 mA
TX: Max 9 A |
| Antenna impedance / connector: | 50 ohms / SO-239 |
| Dimensions (W*H*D): | 145*47*190 mm (5.71*1.85*7.48") |
| Weight: | 1.2 Kg (2.65 lb) |
| Other features: |
CTCSS/PL and DCS. DTMF. 2-tone/5-tone. Backlit DTMF-microphone.
PC-programmable.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | FM: 0.25 uV (12 dB SINAD)
NFM: 0.35 uV (12 dB SINAD)
|
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China (By Qixiang Electron Co. Ltd.), 20xx-20xx (Discontinued) |
| Additional info: |
New price 2016 in Sweden: SEK 1995:-
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CP50
PC50
QCC-01
QDM-01
QL-01A
QL-01B
QPS-588
QRP-01
SP-01
|
Cloning cable
USB programming cable
Cigarett-plug connection line
Desktop microphone
Alarm cable
Alarm cable extension
Programming software
Regulated power supply
External speaker
|
|
