| GENERAL |

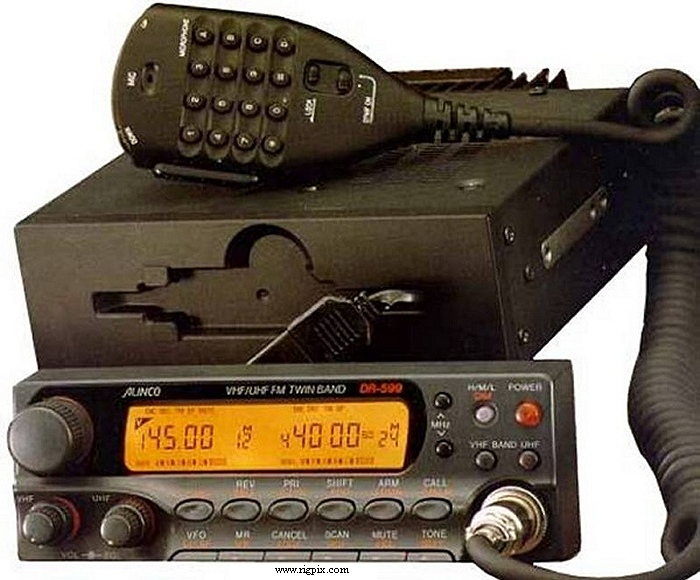

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
USA
TX: 144-148 / 440-450 MHz
RX: 135-174 / 410-470 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 KHz |
| Frequency stability: | ±? ppm |
| Mode: | FM |
| Channels / memory management: |
28 regular
10 ARM
1 call
2 scan edge pairs (Program scan), 1 per band
Priority function
|
| Repeater shift / offset: | ±0 to 10.995 MHz |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: 800 mA (Squelched)
TX: Max 10 A |
| Antenna impedance / connector: | 50 ohm / Two SO-239 (On pigtails) |
| Dimensions (W*H*D): | 150*50*178 mm (5.9*1.97*7") |
| Weight: | 1.5 Kg (3.3 lb) |
| Other features: |
CTCSS/PL encoder. Detachable head. Dimmer. Crossband repeater.
Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 30.825 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.16 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB)
24 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 2.5 W at ?% distortion / 8 ohm |
| External speaker connector: | Two 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 45 W | 10 W | 5 W |
| 70 cm: | 35 W | 8 W | 4 W |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 199x-199x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (232 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
EJ-7U
EJ-8U
|
CTCSS/PL decoder unit (Tone squelch)
DTMF decoder unit (With DSQ paging)
|
|
