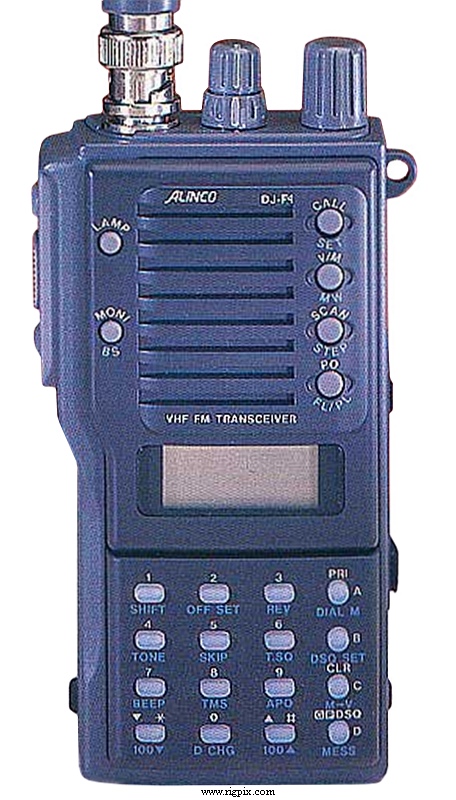

| GENERAL |
| Type: | Amateur UHF transceiver |
| Frequency range: |
USA
TX: 440-450 MHz
RX: 410-470 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 KHz |
| Frequency stability: | ±? ppm |
| Mode: | FM |
| Channels / memory management: |
40 regular
1 call
Priority function
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±0 to 16 MHz in 5 KHz steps |
| Power supply: | 6-12 VDC (Depending on battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 53*110*37 mm (2.1*4.33*1.46"), with EBP-16N or EDH-5 |
| Weight: | 375 g (13.2 oz), with EBP-16N |
| Other features: |
DTMF keypad and DSQ paging. Backlit display. CTCSS/PL encoder.
Tone squelch and tone scan option (EJ-12U).
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 23.05 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.18 uV (12 dB SINAD) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 1.5-5 W | 1 W | 100 mW |
NB! The high output level depends on battery pack / voltage
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 199x-199x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (349 KB)
Service manual (1.7 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
EA-17
EA-18
EBC-3
EBC-5
EBP-14N
EBP-16N
EBP-18N
EDC-24
EDC-25
EDC-34
EDC-35
EDC-36
EDC-37
EDC-43
EDH-5
EJ-12U
EME-4
EME-6
EME-10(K)
EME-11
EMS-2Z
EMS-8
ESC-15
|
VHF antenna
UHF antenna
Belt clip
Shoulder belt with soft case
NiCd battery pack (Thin type). 7.2 V, 400 mAh
NiCd battery pack. 7.2 V, 700 mAh
NiCd battery pack. 12 V, 600 mAh
Wall charger (120 VAC)
Wall charger (220 VAC)
Quick charger (120 VAC)
Quick charger (220 VAC)
Mobile DC power cable/charger with noise filter
Cable power supply, 13.8 VDC
Mobile DC power cable/charger
Dry cell battery case, for six LR6 / AA batteries
CTCSS/PL tone squelch unit
Earphone-microphone with PTT
Earphone
Headset with PTT & VOX
Earphone-microphone with PTT & VOX
Speaker-microphone
Remote control speaker-microphone
Soft case
|
|
