| GENERAL |

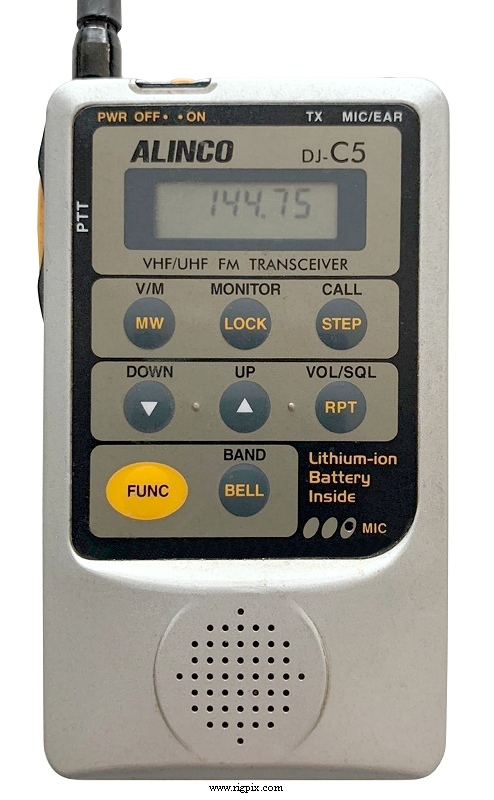

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
Europe
TX: 144-146 / 430-440 MHz
RX: 144-146 / 430-440 MHz
|
| Tuning steps: | ? KHz |
| Frequency stability: | ±? ppm |
| Mode: | FM |
| Channels / memory management: |
50 regular
2 call (1 per band)
|
| Repeater shift / offset: | ±0 to 99.995 MHz |
| Power supply: | 3.8 VDC (Li-Ion battery) |
| Current drain / power consumption: | RX: 30-40 mA (Squelched)
TX: 240-300 mA |
| Antenna impedance / connector: | 50 ohm / Threaded |
| Dimensions (W*H*D): | 56*94*11 mm (2.2*3.7*0.43") |
| Weight: | 85 g (3 oz), with battery |
| Other features: | CTCSS/PL. 1750 Hz tone call. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 20.8 MHz (VHF) - 21.7 MHz (UHF)
2nd IF: 450 KHz
|
| Sensitivity: |
VHF: 0.16 uV (No reference
UHF: 0.18 uV (No reference)
|
| Selectivity: | |
| Image rejection: | |
| AF output power/speaker: | 60 mW at ?% distortion / ? ohm |
| External speaker connector: | 3.5 mm, 32 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | Reactance modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1998-200x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (179 Kb) |
| Modifications and fixes: | Frequency expansion |
| Reviews: | |
| Options / Accessories: |
EDC-36
EDC-76K
EDC-77K
EDH-26
EDS-7
EME-2
EME-3
EME-4
EME-16
EME-17
EMS-9
EMS-47
EMS-50
ML11-1657
|
Car-charging cable with noise filter (For use with EDH-26)
Wall charger (120 VAC) including EDH-26
Wall charger (220 VAC) including EDH-26
Charger tray, part of EDC-76K/77K
Conversion cable
Earphone-microphone, tie-pin type with straight plug
Earphone
Earphone-microphone, tie-pin type
Earphone-microphone, tie-pin type
Earphone-microphone, telephone operator type
Speaker-microphone
Speaker-microphone
Speaker-microphone
Li-Ion battery pack. 3.8 V, 600 mAh
|
|
