| GENERAL |

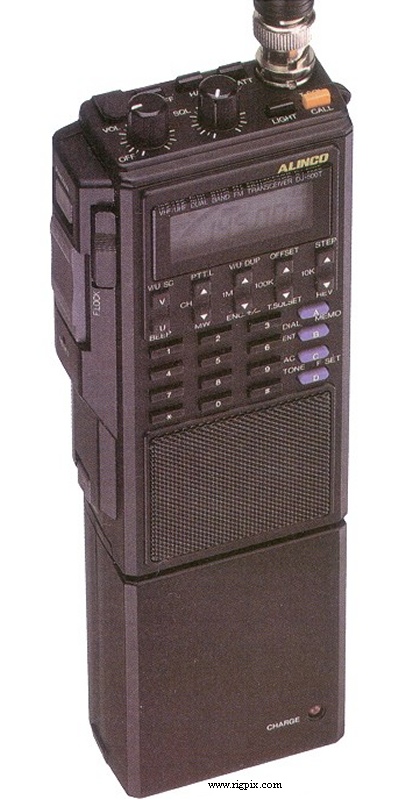

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
USA
TX: 144-148 / 440-450 MHz
RX: 144-148 / 440-450 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 20 / 25 KHz |
| Frequency stability: | ±? ppm |
| Mode: | FM |
| Channels / memory management: |
20 regular (10 per band)
|
| Repeater shift / offset: | Programmable |
| Power supply: | 7-12 VDC (Depending on battery pack) or 5.5-12 VDC external |
| Current drain / power consumption: | RX: 50-130 mA
TX: Max 1.2 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 58*176*30 mm (2.28*6.93*1.18") |
| Weight: | 435 g (15.34 oz) |
| Other features: |
CTCSS/PL. DTMF keypad. 10 dB attenuator. Backlit display.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 55.05 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 550 mW at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High
@12V | High
@7.2V | Low
@12V | Low
@7.2V |
|---|
| 2 m: | 6 W | 2.5 W | 850 mW | 450 mW |
| 70 cm: | 5.5 W | 2 W | 850 mW | 450 mW |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (69 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
EBC-2Z
EBP-6NAZ
EBP-7NAZ
EBP-8NAZ
EDC-2
EDC-6
EDC-7
EDC-8Z
EDC-10
EDC-11
EDC-12
EME-2
EME-3Z
EMS-1Z
ESC-9
|
Mobile bracket
NiCd battery pack. 9.6 V, 450 mAh
NiCd battery pack. 7.2 V, 700 mAh
NiCd battery pack. 12 V, 700 mAh
Cigarette lighter plug
Wall charger for 7.2 and 9.6 V NiCd packs (220 VAC)
Charging stand for EBP-6NAZ
Cigarette lighter plug with noise filter
Wall charger for 7.2 and 9.6 V NiCd packs (120 VAC)
Wall charger for 12 V NiCd pack (120 VAC)
Wall charger for 12 V NiCd pack (220 VAC)
Earphone-microphone
Earphone
Speaker-microphone
Soft case
|
|
