| GENERAL |

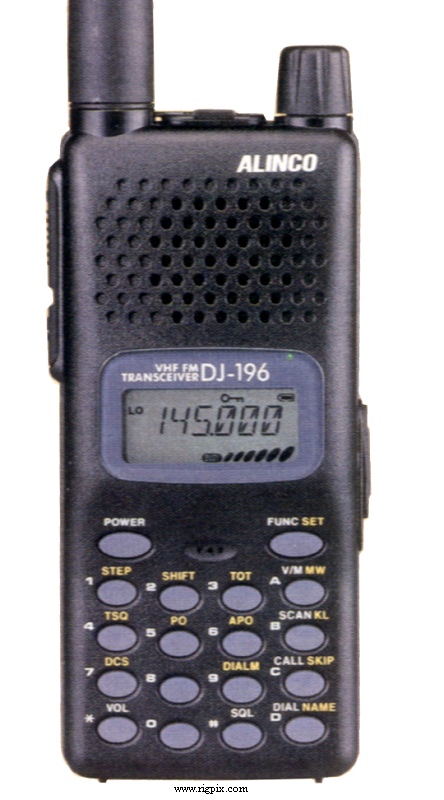

| Type: | Amateur VHF transceiver |
| Frequency range: |
USA
TX: 144-148 MHz
RX: 135-175 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 / 30 KHz |
| Frequency stability: | ±5 ppm (No temperature reference) |
| Mode: | FM |
| Channels / memory management: |
40 regular with alpha tags
1 call
|
| Repeater shift / offset: | ±0 to 99.995 MHz in 5 KHz steps |
| Power supply: | 6-10 VDC (Battery pack)
or 6-16 VDC external (Barrel connector, center positive) |
| Current drain / power consumption: | RX: 20-200 mA
TX: Max 1.2 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 56*124*40 mm (2.2*4.88*1.57"), with EBP-48N |
| Weight: | 375 g (13.2 oz), with EBP-48N |
| Other features: |
CTCSS/PL and DCS. Theft alarm and mosquito repel feature.
DTMF keypad. 1000 / 1450 / 1750 / 2100 Hz tone call. Cloning.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.7 MHz
2nd IF: 450 KHz
|
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB)
26 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 200 mW at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High
@9.6V | Low |
|---|
| 2 m: | 5 W | 800 mW |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 20xx-20xx (Discontinued) |
| Additional info: | |
| Related documents: | User manual (353 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
EBC-6
EBP-48N
EDC-36
EDC-37
EDC-88
EDC-93
EDC-94
EME-6
EME-12
EME-13
EME-15
EMS-9
EMS-51
ESC-36
|
Mobile bracket
NiCd battery pack. 9.6 V, 700 mAh
Cigarette lighter adapter with noise filter
DC power cable
Quick charger (120 / 230 VAC)
Wall charger (120 VAC)
Wall charger (230 VAC)
Earphone
Headset with VOX
Earphone and microphone with VOX
Tie-pin microphone with VOX
Speaker-microphone
Speaker-microphone
Soft case
|
|
