| GENERAL |

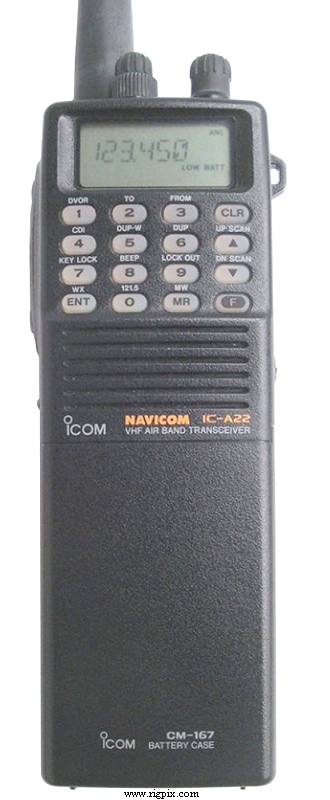

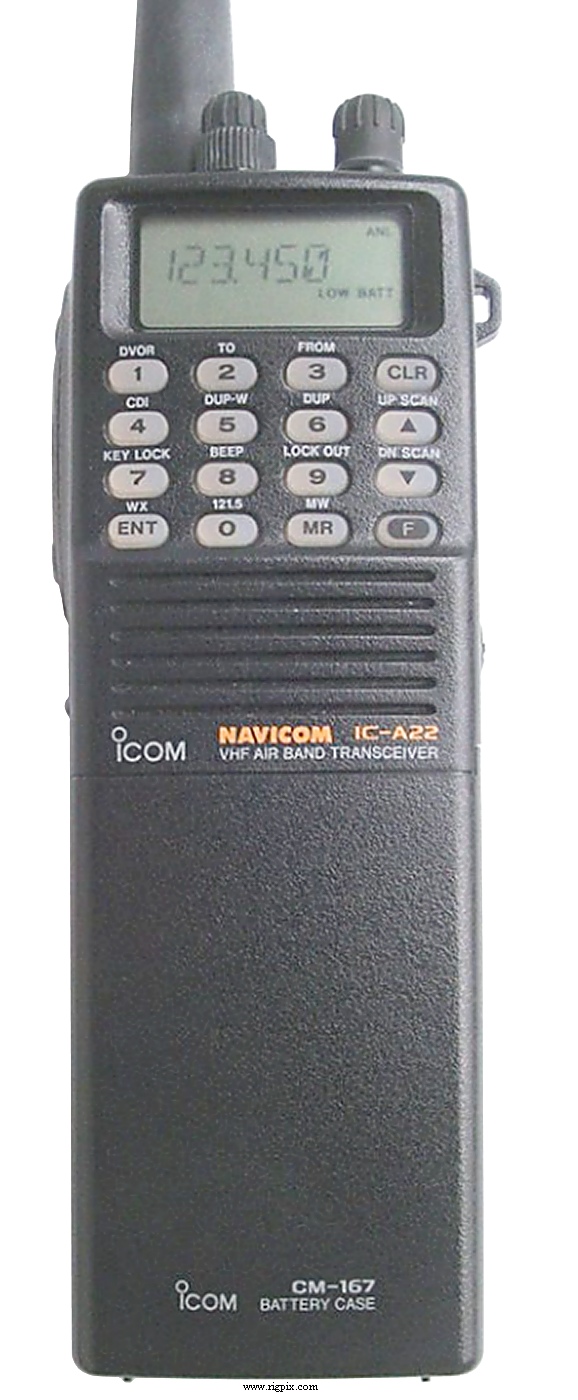

| Type: | Airband transceiver |
| Frequency range: |
USA
TX: 118-137 MHz
RX: 108-137 / 161.650-163.275 MHz
|
| Tuning steps: | 25 KHz |
| Frequency stability: | ±20 ppm @ -10 to +50°C (14 to 122°F) |
| Mode: | TX: AM
RX: AM / FM |
| Channels / memory management: |
50 regular with alpha tags (Six characters)
10 NOAA weather channels
|
| Power supply: | 12-15 VDC |
| Current drain / power consumption: | RX: 55-400 mA
TX: Max 1 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 57*153*35 mm (2.24*6.02*1.38") |
| Weight: | 465 g (16.4 oz), with CM-166 and antenna |
| Other features: |
121.5 MHz quick access. Includes a VOR receiver with CDI function.
The navigation features include TO and FROM the VOR, course deviation
indicator and automatic bearing set system. ANL. Scanning.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 35.8 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 1 uV (6 dB S/N) |
| Squelch sensitivity: | Less than 4 uV (Tight) |
| Noise figure: | |
| Selectivity: | 8 KHz (-6 dB)
25 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 600 mW at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
1.5 W carrier (5 W PEP)
|
| Modulation system: | Low level modulation |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 150 ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1995-200x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (2.7 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AD-50
BC-79
BM-95V
BM-112E
BM-112U
CM-166
CM-167
CP-17L
LC-122
OPC-499
OPC-507
OPC-515L
|
Desktop charger adapter
Desktop charger
Wall charger (Australia)
Wall charger (Europe)
Wall charger (USA)
NiCd battery pack. 12 V, 600 mAh
Battery case (Ten LR6 / AA alkaline batteries)
Cigarette lighter cable
Carrying case
Headset adapter cable
Jack adapter
DC power cable
|
|
