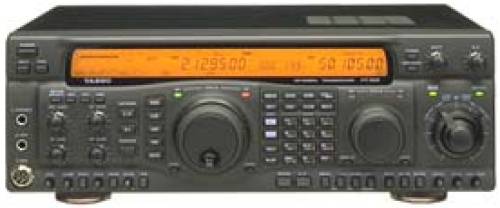

Yaesu FT-920AF

SPECIFICATIONS
Type:Amateur HF/VHF transceiver
Frequency range:TX: 10-160 m + WARC / 50-54 MHz
RX: 0.1-30 MHz
Mode:AM/SSB/CW (FM option)
RF Power output:SSB/CW: Max 100 W
AM: 25 W
Sensitivity:N/A
Selectivity:N/A
Image rejection:N/A
Voltage:13.8 VDC
Current drain:RX: Max 2.2 A
TX: Max 22 A
Impedance:16.7-150 ohms with a built-in auto-AT
Dimensions (W*H*D):410*135*316 mm
Weight:11.5 Kg
Manufactured:199x-200x (Discontinued)
Other:DSP.127 memories. RS-232C. Twin RX.
