Back to main Back to Yaesu Next HT/portable Last modified 2004-04-21 |

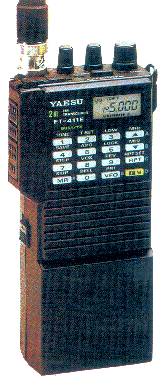

| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 144-146 MHz RX: 140-174 MHz |
| Mode: | FM |
| RF Power output: | Max 5 W |
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| Voltage: | 5.5-15 VDC |
| Current drain: | RX: ? mA TX: Max 1.3 A |
| Impedance: | 50 ohms / BNC |
| Dimensions (W*H*D): | 55*139*32 mm (2.16*5.47*1.26") |
| Weight: | ? gr |
| Manufactured: | 1988-19xx (Discontinued) |
| Other: | 49 memory channels. New price 1988 in Sweden: 3245:- SEK |
| Related documents: |
