Yaesu FT-404R

A picture of Yaesu FT-404R
A top view picture of Yaesu FT-404R
A picture of Yaesu FT-404R with FTT-1 DTMF keypad option

SPECIFICATIONS

GENERAL
Type:Amateur UHF transceiver
Frequency range: TX: 430-440 MHz
RX: 430-440 MHz
Tuning steps:Channelized
Frequency stability:±? ppm
Mode:FM
Channels / memory management: 6 regular
XTAL controlled
Repeater shift / offset:According to XTALs
Power supply:9.6 VDC ±10% (7 alkaline or 8 NiCd batteries)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):69*171*49 mm (2.72*6.73*1.93")
Weight:400 g (14.11 oz), without batteries
Other features:1750 Hz repeater tone (Europe).




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:500 mW at 10% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power: 3 W
Modulation system:Vector phase modulation
Max FM deviation (Factory set):±5 KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:2 Kohm / 6-pin
Microphone input level:




MISCELLANEOUS
Manufactured:Japan, 1980-198x (Discontinued)
Additional info:Closeout price, september 1981 in the US: $269.95
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
FTS-32E
FTS-32ED
FTT-1
LCC-2
LCC-3
LCC-4
MMB-10
NC-3A
PA-2
YM-24A
CTCSS/PL encoder unit
CTCSS/PL encoder/decoder unit
DTMF keypad
Heavy duty case
Heavy duty case
Shorty case
Mobile bracket
Quick charger
Mobile adapter
Speaker-microphone

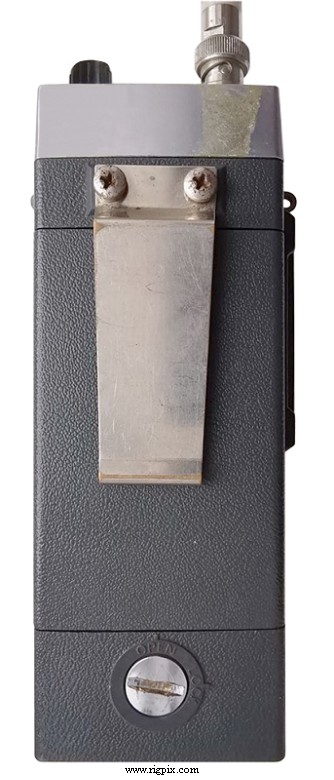

A rear picture of Yaesu FT-404R
