Whistler WS1025

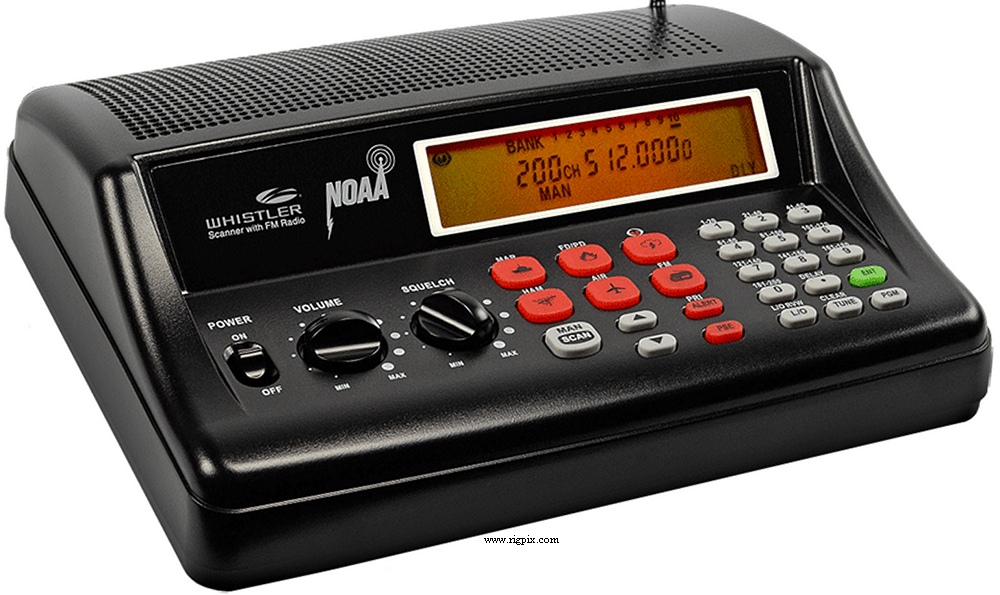

A picture of Whistler WS1025

SPECIFICATIONS

GENERAL
Type:VHF/UHF receiver/scanner
Frequency range:29-54 / 87-108 / 108-174 / 380-512 MHz
Tuning steps:5 / 8.33 / 12.5 / 100 KHz
Mode:AM/FM/WFM
Channels/memory management:200 regular in 10 banks @ 40 ch/s
1 priority
Power supply:9 VDC
Current drain/power consumption:? mA
Antenna impedance/connector:50 ohms / BNC
Dimensions (W*H*D):175*60*210 mm (6.87*2.37*8.25")
Weight:700 gr (24.7 oz)
Other features:SAME/FIPS weather alert. Data cloning




RECEIVER SECTION
Receiver system:Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
Sensitivity:29-54 MHz: 0.5 uV (20 dB S+N/N)
87.3-107.9 MHz: 1 uV (20 dB S+N/N)
108-137 MHz: 1 uV (20 dB S+N/N)
137-174 MHz: 0.5 uV (20 dB S+N/N)
380-512 MHz: 0.7 uV (20 dB S+N/N)
Selectivity:AM/FM: 16 KHz (-6 dB), 34 KHz (-50 dB)
WFM: 160 KHz (-6 dB), 360 KHz (-50 dB)
Image rejection:
AF output power/speaker:700 mW at 10% distortion / 8 ohms
External speaker connector:




MISCELLANEOUS
Manufactured:2014-201x
Additional info:
Related documents:User manual (1.4 MB)
Modifications:
Options/Accessories:
- -
