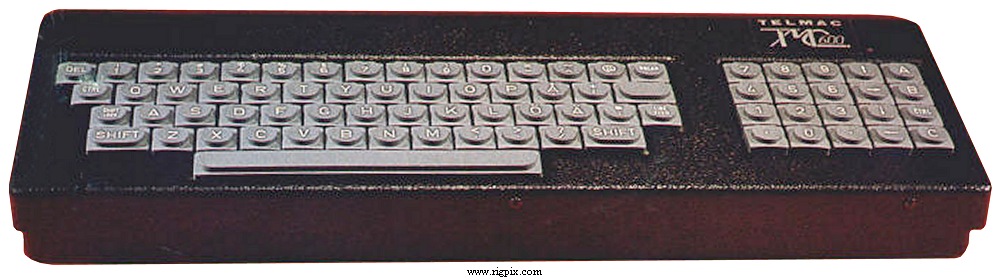

Telmac TMC-600

SPECIFICATIONS
Type:8-bit home computer
CPU:RCA CDP1802A @ 3.58 MHz
Operating system:SBasic
Memory:ROM: 20 KB
RAM: 9 KB (Expandable to 30 KB)
Sound:8 octaves, white noise, volume control (CDP1869)
Graphics:Text: 20*24 or 40*24 characters
Graphics: ?*? pixels (8 colors)
(CDP1869 + CDP1870)
Storage:Tape recorder
Input:Integrated keyboard
I/O ports:Tape recorder I/O
TV-out
Parallel (Centronics)
Telmac Eurobus
Network connector
Voltage:7-12 V AC/DC
Power consumption:
Dimensions (W*H*D):430*190*160 mm
Weight:1.6 Kg (With power supply)
Manufactured:Finland (By Telercas OY), 1982-198x (Discontinued)
Other:
Related documents:
Modifications:
Notable "ham" software:
