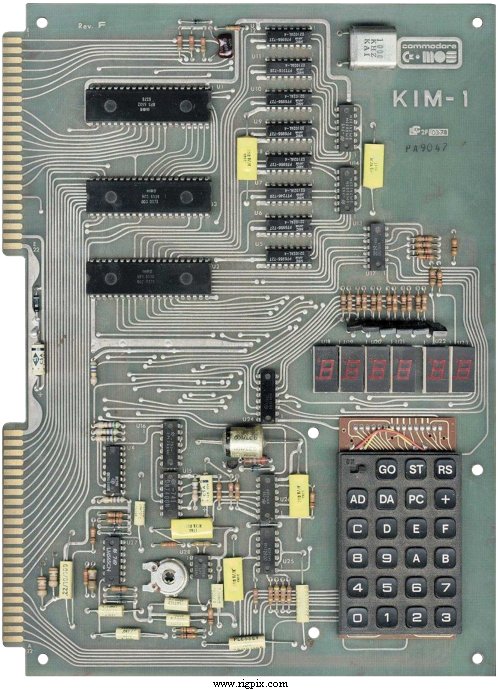

Commodore KIM-1

SPECIFICATIONS
Type:8-bit trainer computer
CPU:MOS 6502 @ 1 MHz
Operating system:TIM (Terminal Interface Monitor)
Memory:RAM: 1152 Bytes
ROM: 2 KB
Sound:-
Graphics:6*7 segment LEDs
Storage:Tape recorder
Input:23-key keypad
I/O ports:2*serial ports (Not RS-232C compliant!)
Voltage:
Power consumption:
Dimensions (W*H*D):? mm (?")
Weight:? g (? oz)
Manufactured:USA, 1976-1981 (Discontinued)
Other:Was previously manufactured under the MOS Technology brand
before Commodore bought the company in 1976.
Related documents:
Modifications:
Notable "ham" software:-
