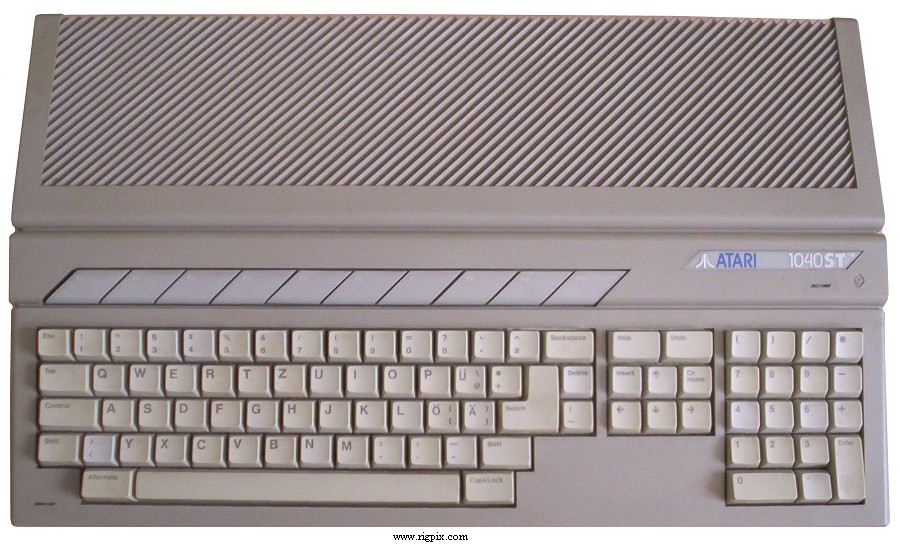

Atari 1040 STFM

SPECIFICATIONS
Type:16/32-bit home computer
CPU:Motorola MC68000 @ 8 MHz
Operating system:TOS & GEM
Memory:ROM: 192 KB
RAM: 1 MB
Sound:3 voices + 1 noise channel (Yamaha YM2149)
Graphics:Low res: 320*200 pixels, 16 colors of 512
Medium res: 640*200 pixels, 4 colors of 512
High res: 640*600 pixels, monochrome
Storage:Built-in 3.5" floppy
Optional hard drive and extra floppy
Input:Integrated keyboard
Mouse
I/O ports:RS-232C, Centronics, Monitor out, TV out, extra floppy port,
MIDI in/out, DMA port, ACSI port, joystick, mouse port, cartridge slot
Voltage:
Power consumption:
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lbs)
Manufactured:1987-1993 (Discontinued)
Other:
Related documents:
Modifications:
Notable "ham" software:ST-Wefax (With a Kantronics KPC or KAM) - By GM4JJJ (SK)
