SSB Electronics LT-6S

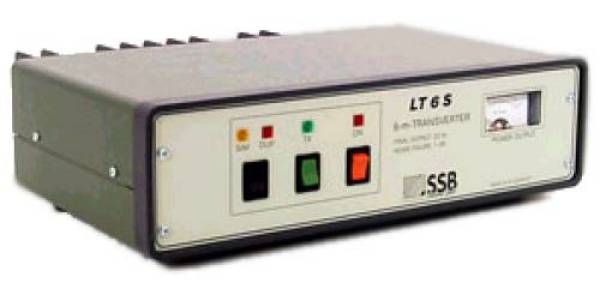

A picture of SSB Electronics LT-6S

SPECIFICATIONS

GENERAL
Type:Amateur VHF transverter
Frequency range / band:50 MHz (6 m)
IF:28 MHz (10 m)
Frequency stability:? ppm
Power supply:13.8 VDC
Current drain / power consumption:RX: Max ? mA
TX: Max ? A
Impedance / connectors:50 ohm / N-jack RF in/out, BNC IF in/out
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:GaAsFET pre-amp. Built-in power meter.




RECEIVER SECTION
Sensitivity:
Gain:
Noise figure:




TRANSMITTER SECTION
RF output power: 20 W
Spurious emissions:Better than -? dB
RF drive power:1-500 mW




MISCELLANEOUS
Manufactured:Germany, 199x-200x (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
