Sony ICF-SW100E / ICF-SW100S

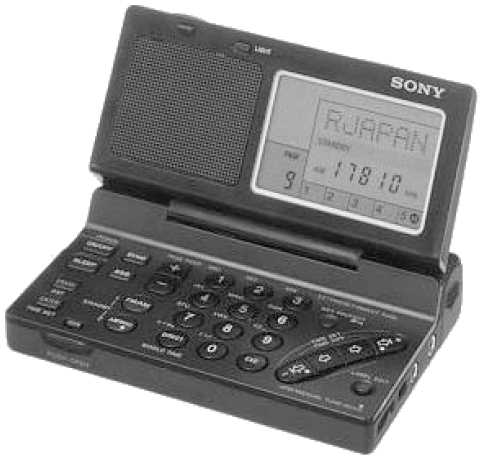

A picture of Sony ICF-SW100E / ICF-SW100S

SPECIFICATIONS

GENERAL
Type:HF/VHF receiver
Frequency range
depending on version:
General markets
0.15-30 / 76-108 MHz
Italy
0.15-0.285 / 0.53-1.62 / 3.85-26.1 / 87.5-108 MHz
Saudi Arabia
0.15-0.285 / 0.53-26.1 / 87.5-108 MHz
Tuning steps:100 Hz and 1 KHz
Frequency stability:? ppm
Mode:AM / AM-Sync / SSB / WFM
Channels / memory management: 50 regular in 10 "pages", with alpha tags
Power supply:3 VDC (Two LR6 / AA batteries)
or 3 VDC external
Current drain / power consumption:? mA
Antenna impedance / connector: or ? ohm / 3.5 mm (wWth 3 VDC output)
Ferrite rod + telescopic whip
Dimensions (W*H*D):111*24*73 mm (4.37*0.95*2.87")
Weight:220 g (7.76 oz), with batteries
Other features:World time clock. Dual clock and alarm. DX/Local switch.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne (WFM)
IF: 10.7 MHz
Double conversion superheterodyne (AM/AM-Sync/SSB)
1st IF: 55.845 MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:250 mW at 10% distortion / 8 ohm
External speaker connector:3.5 mm, 16 ohm




MISCELLANEOUS
Manufactured:1994-200x (Discontinued)
Additional info:
Related documents:Service manual (7.7 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
AC-E311
AC-E312
AC-E313
AC-E314
AN-71
AN-100
AC power adapter, 100-240 VAC (Other markets)
AC power adapter, 120 VAC (USA)
AC power adapter, 100-240 VAC (Other markets)
AC power adapter, 100-240 VAC (Canada)
Compact wire antenna
Active antenna
