Sommerkamp FL-500B

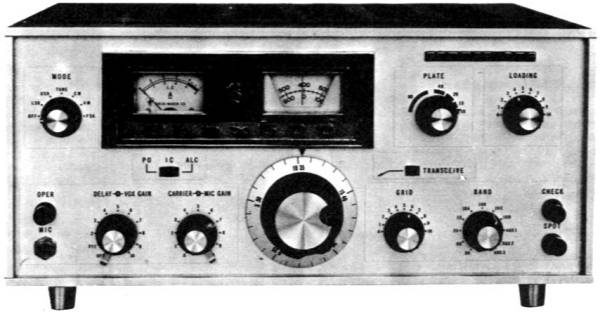

A picture of Sommerkamp FL-500B

SPECIFICATIONS

GENERAL
Type:Amateur HF transmitter
Frequency range:10-80 m
Tuning steps:Analog / continuous
Frequency stability:? ppm
Mode:AM / SSB / CW
Channels / memory management:None
Power supply:Mains
Current drain / power consumption:Max ? W
Antenna impedance / connector:50-120 ohm / SO-239
Dimensions (W*H*D):370*160*290 mm (14.57*6.3*11.42")
Weight:19 Kg (41.89 lb)
Other features:




TRANSMITTER SECTION
RF output power:

Pwr
AM:? W
SSB (PEP):~100 W
CW:? W
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?-pin
Microphone input level:? mV




MISCELLANEOUS
Manufactured:196x-196x (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
