| GENERAL |

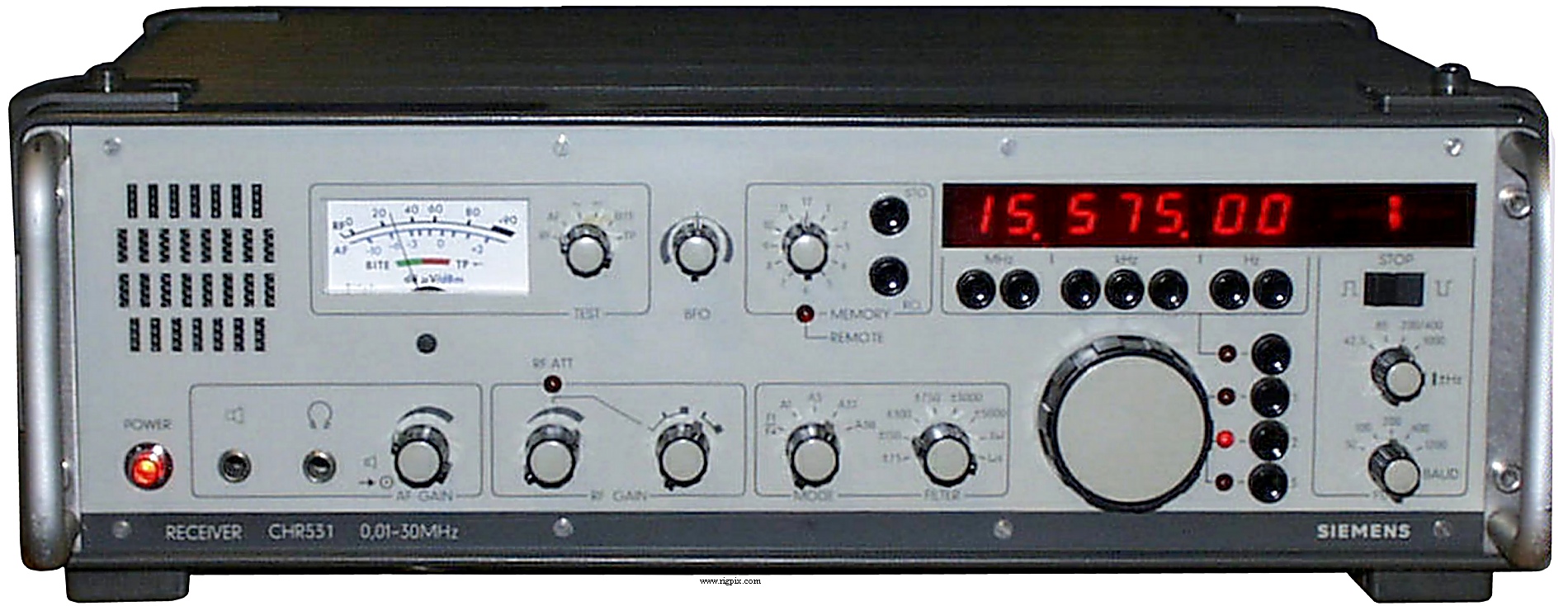

| Type: | HF receiver |
| Frequency range: |
0.01-30 MHz
|
| Tuning steps: | ? KHz |
| Frequency stability: | ? ppm |
| Mode: | AM / SSB / CW / RTTY / FAX |
| Channels / memory management: |
12 regular
|
| Power supply: | Mains: 110 / 125 / 220 / 240 VAC |
| Current drain / power consumption: | 80 W |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 448*153*470 mm (17.64*6.02*18.5") |
| Weight: | 23 Kg (50.71 lb) |
| Other features: | IF output. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 73.03 MHz
2nd IF: 30 KHz
|
| Sensitivity: | 0.25 uV (10 dB S+N/N) |
| Selectivity: |
Selectable bandwidths (-6 dB)
75, 150, 300, 750 Hz
3 and 6 KHz
|
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | West Germany, 1981-1988 (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
