Sangean ATS-909

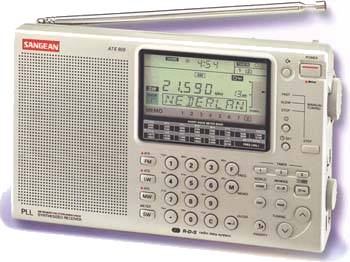

A picture of Sangean ATS-909

SPECIFICATIONS

GENERAL
Type:HF/VHF receiver
Frequency range:0.153-30 / 87.5-108 MHz
Tuning steps:40 Hz, 1 / 5 / 9 / 10 / 50 / 100 KHz
Mode:AM/SSB/CW/WFM Stereo
Channels/memory management:306 regular with alpha tags
EEPROM storage
Power supply:4.8-6 VDC (4*R6/AA) or 6 VDC external
Current drain/power consumption:Max 250 mA
Antenna impedance/connector:50-75 ohms / ? or telescopic whip
Built-in ferrite bar for LW and MW.
Dimensions (W*H*D):215*133*38 mm (10.04*5.24*1.5")
Weight:850 gr (1.87 lbs), without batteries
Other features:RDS. World clock with alarm and sleep timer.




RECEIVER SECTION
Receiver system:? conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power/speaker:? W at ?% distortion / ? ohms
External speaker connector:




MISCELLANEOUS
Manufactured:Taiwan, 1996-20xx (Discontinued)
Additional info:
Related documents:User manual (363 KB)
Modifications:
Options/Accessories:
- -
