Realistic Patrolman Pro-3 (20-450)

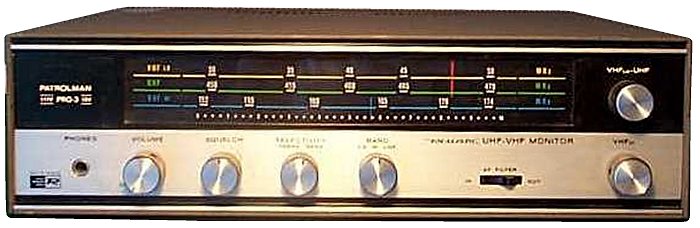

A picture of Realistic Patrolman Pro-3 (20-450)

SPECIFICATIONS

GENERAL
Type:VHF/UHF receiver
Frequency range: 30-50 / 152-174 / 450-470 MHz
Tuning steps:Analog / continuous
Frequency stability:? ppm
Mode:FM
Channels / memory management: None
Power supply:Mains: 117 VAC
or 12 VDC
Current drain / power consumption:? mA @ 12 VDC
Antenna impedance / connector:50-75 ohm / Two ?
Dimensions (W*H*D):356*95*289 mm (14*3.75*11.38")
Weight:? Kg (? lb)
Other features:ANL.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne
IF: 10.7 MHz
Sensitivity: VHF Lo/Hi: 0.5 uV (10 dB S+N/N)
UHF: 1 uV (10 dB S+N/N)
Selectivity:
Image rejection:
AF output power / speaker:2 W at ?% distortion / 8 ohm
External speaker connector:4-16 ohm




MISCELLANEOUS
Manufactured:1971-1972 (Discontinued)
Additional info: New price 1971 in the US: $198.50
New price 1972 in the US: $198.50
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
