Realistic DX-200 (20-205)

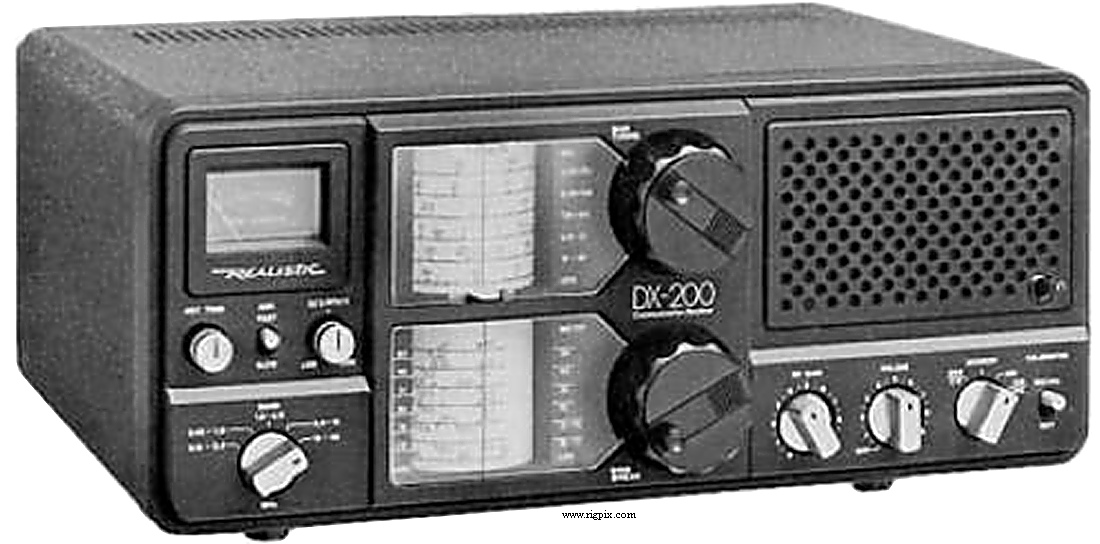

A picture of Realistic DX-200 (20-205)

SPECIFICATIONS

GENERAL
Type:HF receiver
Frequency range: 0.15-30 MHz in four bands
A:   0.15-0.4 MHz
B:   0.52-4.5 MHz
C:   4.5-13 MHz
D:   13-30 MHz
Tuning steps:Analog / continuous
Frequency stability:? ppm
Mode:AM / SSB / CW
Channels / memory management: None
Power supply:Mains: 120 VAC (USA) or 220/240 VAC (Eurpe and Australia)
Current drain / power consumption:? W
Antenna impedance / connector:? ohm / ?
Dimensions (W*H*D):368*165*235 mm (14.5*6.5*9.25")
Weight:6.8 Kg (15 lb)
Other features:ANL. Bandspread. 500 KHz calibrator.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne
IF: 455 KHz
Sensitivity:1 uV (10 dB S/N)
Selectivity:
Image rejection:
AF output power / speaker:1.5 W at 10% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Japan, 1981-1982 (Discontinued)
Additional info: New price 1981 in the US: $229.95
New price 1982 in the US: $229.95
Related documents:
Modifications and fixes:
Reviews:73 Magazine: April 1981, page 124
Options / Accessories:
- -
