Regency ACT-T-720A "Digital Flight Scan"

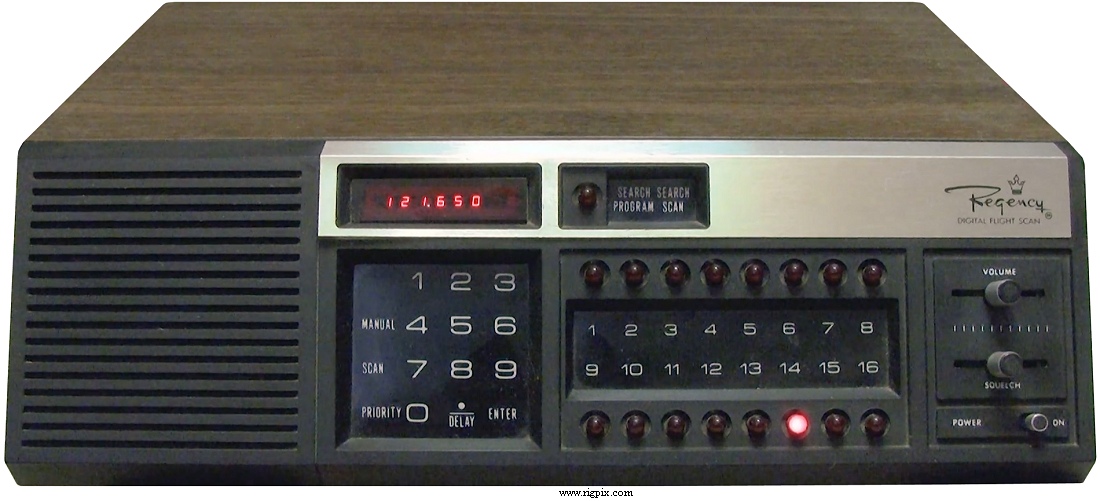

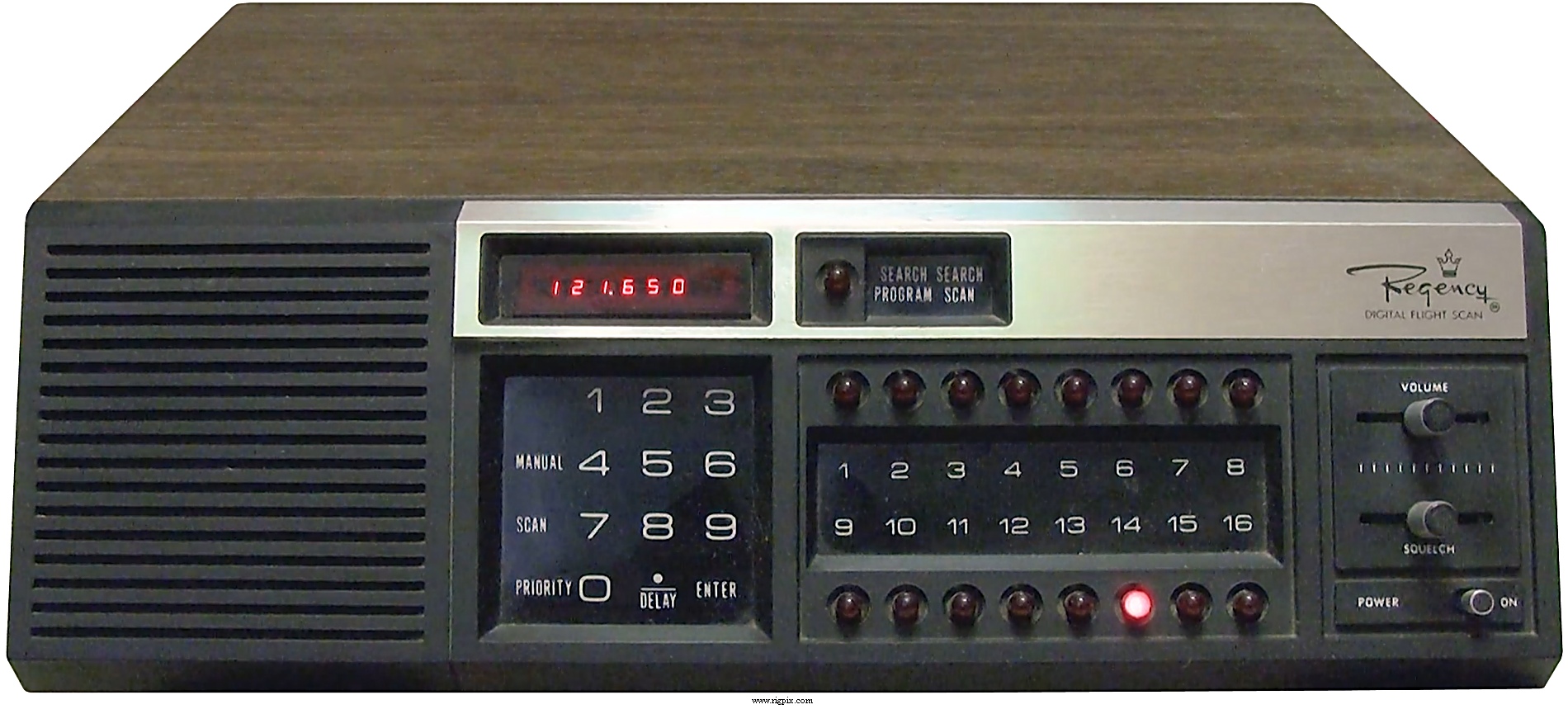

A picture of Regency ACT-T-720A ''Digital Flight Scan''

SPECIFICATIONS

GENERAL
Type:VHF receiver/scanner
Frequency range:118-136 MHz
Tuning steps:25 KHz (118-136 MHz)
50 KHz (108-118 MHz)
Frequency stability:? ppm
Mode:AM
Channels / memory management: 16 regular
1 search limit pair
2 priority
RAM storage with 9 Volt battery backup
Power supply:Mains: 110-130 VAC
or 11.5-15 VDC
Current drain / power consumption:Max 18 W @ mains
Antenna impedance / connector:50-75 ohm / DIN41585 (Motorola)
Dimensions (W*H*D):318*95*248 mm (12.5*3.75*9.75")
Weight:3.63 Kg (8 lb)
Other features:




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
Sensitivity:1 uV (10 dB S+N/N)
Selectivity:55 dB (Adjacent channel)
Image rejection:
AF output power / speaker:1 W at 5% distortion / 8 ohm
External speaker connector:3.5 mm




MISCELLANEOUS
Manufactured:USA, 1978-1979 (Discontinued)
Additional info: New price, march 1979 in the US: $349.00
New price, april 1981 in the UK: £215.00
Related documents:User manual (6.9 MB)
Modifications and fixes:
Reviews:Elementary Electronics: March-April 1979, page 49
Options / Accessories:
- -
